Johnson Level Self Leveling 5 Beam Dot Laser Level - 40-6680
Johnson's self-leveling dot laser level projects a vertical beam straight up and straight down to easily transfer a point from the floor to the ceiling - great for layout and transfer of a canned lighting system in a room - plus will project 3 horizontal beams, 2 from left to right and one straight on to give you a perfect 90-degree angle in a room.
Johnson's self-leveling dot laser level projects a vertical beam straight up and straight down to easily transfer a point from the floor to the ceiling - great for layout and transfer of a canned lighting system in a room - plus will project 3 horizontal beams, 2 from left to right and one straight on to give you a perfect 90-degree angle in a room. All dot laser levels are self-leveling with accuracy of 1/8th of an inch at 50 feet, plus all have locking compensators so the laser level won't shake or be damaged while not in use.
- Self-leveling
- Projects five self-leveling beams simultaneously
- Locking mechanism protects inner pendulum during transportation
- Visual and audible alarms when beyond leveling range
- Laser can be rotated 360° when attached to magnetic laser mount

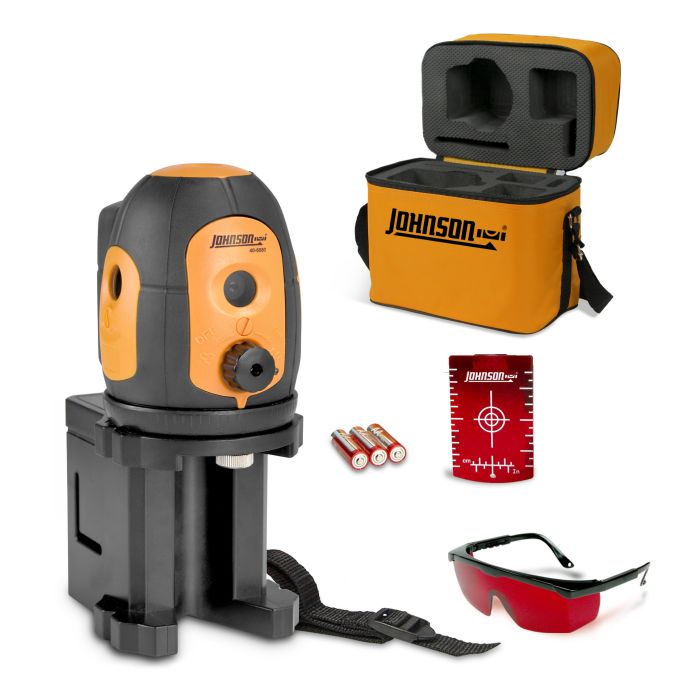

Johnson's Self-Leveling 5 Beam Dot Laser Level Includes:
Multi-functional magnetic base - 3 "AA" alkaline batteries - mounting strap- magnetic target - tinted glasses - instruction manual with warranty card - soft-sided carrying case
Number of Beams | 5 |
---|---|
Leveling Method | Self-Leveling (Pendulum) |
Laser Wavelength | 650nm +/-10nm (Red) |
Laser Classification | Class IIIa |
Maximum Power Output | <=5mW |
Accuracy | +/-1/8"/50ft. (+/-2mm/10m) |
Interior Range | Up to 200ft. (60m) depending on light conditions |
Self-Leveling Range | +/-4.5 degrees |
Power Supply | 3 "AA" alkaline batteries (included) |
Battery Life | Approximately 20 hours with alkaline batteries |
Dimensions | 3.15" x 3.858" x 4.0" (80 x 98 x 101.6mm) |
Weight | 1.101lbs. (0.5kg) |
Working Temperature | 14F to 113F (-10C to +45C) |
Center Screw Thread | 5/8"-11, 1/4"-20 |
IP Protection Class | 55 |
Warranty | 3 Years |
Manufacturer | Johnson Level |
---|---|
Range | 25 ft +, 50 ft +, 75 ft +, 100 ft +, 200 ft + |
Number of Points | 5 Points |
