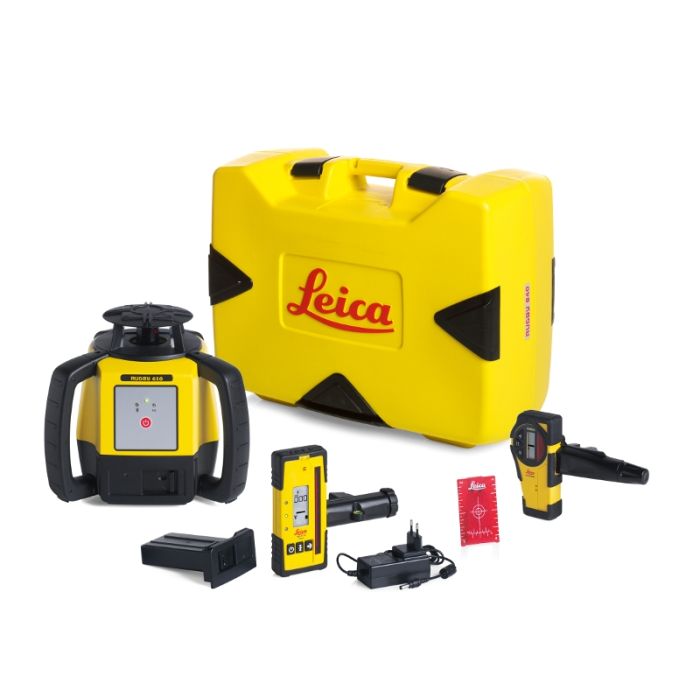

Leica Rugby 640 Self Leveling Dual Grade Rotating Laser Level
Fit, fast, tough – Select the perfect team player for your site
Leica Rugby lasers are the toughest rotating lasers suitable for all construction applications. Level, align and square much quicker than ever before, eliminating costly errors and downtime.
With the Leica Rugby 600 Series, Leica Geosystems further expands its strong portfolio of rotating lasers. All of the five models of the Rugby 600 Series offer a professional solution with an outstanding price-to-quality-ratio allowing quick leveling and aligning for general construction and interior applications eliminating costly errors, rework and downtime. The Rugby 600 Series lasers include the customer care package ‘PROTECT by Leica Geosystems’, which offers a life time warranty and a three year no cost period. The Rugby 600 Series lasers are built for the construction site - water & dust proof, extremely durable housing and perform to the highest standards in all conditions.
Whether construction workers need to align form work, level ceiling, set-out walls or check grades on constructions sites, the Rugby 600 series provide an extremely easy to use tool with minimum buttons and self-leveling capabilities, add to that the guaranteed quality and it's easy to see why so many construction professionals choose the Leica Rugby 600 series.
Li-Ion for long operation times The new generation of long-lasting Lithium-Ion rechargeable battery is extremely robust and allows more than 40 hours of operation per charge. The battery packs are interchangeable throughout the new Leica Rugby 600 Series.
Lifetime manufacturer’s warranty, 3 years no cost. Customers will benefit from the unique PROTECT by Leica Geosystems service offered. The warranty covers the entire product lifetime and features free of charge repair or replacement for all products that suffer defects as a result of faults in materials or manufacturing. The 3 Year No Cost period includes the repair or replacement of all defective parts, labor time, adjustment and calibration.
| Technical data | Leica Rugby 640 | ||
| Dimensions | 212 × 239 × 192 mm | ||
| Weight | 2.56 kg / 5.6 lbs | ||
| Functionality | Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
||
| Product type | Multipurpose / H.V. | ||
| Laser class | Class 2 | ||
| Laser type | 635 nm (visible) | ||
| Plumb up | Yes | ||
| Measured at 20°C (horizontal / vertical) |
± 1.5 mm at 30 m (1/16" at 100 ft) | ||
| Rotation – RPS | 0, 2, 5, 10 | ||
| Scanning – degrees | 10, 45, 90 | ||
| Scan90 | Yes | ||
| Beam down | Yes | ||
| Sleep mode | Yes | ||
| Range (diameter) – Basic | 500 m (1.650 ft) | ||
| Range (diameter) – RE140/160 | 1.100 m (3.600 ft) | ||
| RF remote control (diameter) | 200 m (650 ft) | ||
| Li-Ion batt. / hours operation | 40+ | ||
| Alkaline batt. / hours operation | 60+ | ||
| Working temperature range | –20 to +50 °C (–4 to +122 °F) |
||
| Storage temperature range | –40 to +70 °C (–40 to +158 °F) |
||
| Seal (both excluding and including battery pack) |
IP67 | ||
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) | ||
| Manufacturer | Leica |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal Only |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft + |
| Grade / Slope | Dual |
| Grade / Slope Mode | Manual |
