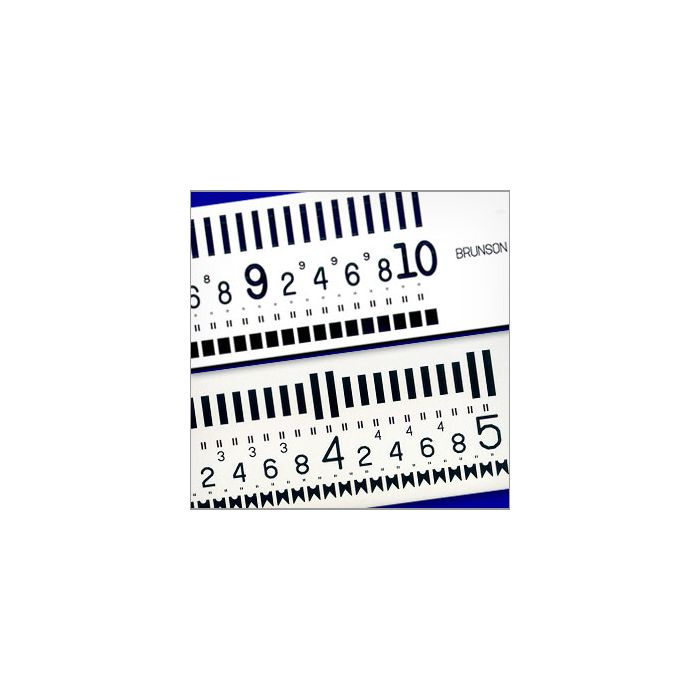

Brunson 6000 Series Wyteface English Unit Optical Tooling Scale 5″, 10″, & 20″
The optical micrometer on an instrument works like a vernier, displacing the line of sight laterally.
Our scales have optical targets evenly spaced every 2 mm. The optical micrometer on an instrument works like a vernier, displacing the line of sight laterally. Using this displacement, the reticle is “brought into register” with the nearest target on the scale, and the precise displacement is read directly from the graduated micrometer drum. By adding or subtracting the micrometer’s reading from the scale position, a precise measurement is made.
All of our metric scales except the 1000mm size are graduated throughout their stated length. The 1000mm scales are blank over the lower 495mm and are graduated over the upper 521mm (see image below). Each scale is shipped in a vinyl sheath.
A number of accessories are available for use with our scales (listed at the bottom of this page). These include magnetic holders, levels, and special adapters. Also included is our line of Invar extension tubing, available in many different configurations to suit your measurement needs.
Material: Hardened tool steel
Matte white background, black graduations and numbers, non-glare topcoat
Target spacings: 0.13mm, 0.25mm, 0.60mm, 1mm
Major divisions: 1 cm
Minor divisions: 0.2 cm
Width: 25.4mm (1000 mm scale is 38.1 mm wide)
