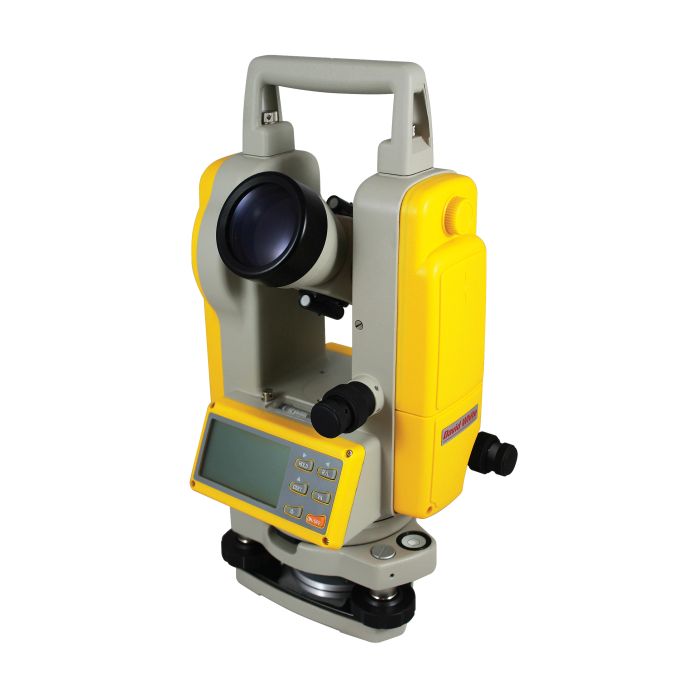

David White DT8-05LP 5-Second Digital Theodolite
The David White DT8-05LP 5" Digital Theodolite with Laser Plummet is an economical instrument used for alignment, establishing plumb, and turning angles. Simple, push button functions gives the user precise LCD digital readouts.
The David White DT8-05LP 5" Digital Theodolite with Laser Plummet is an economical instrument used for alignment, establishing plumb, and turning angles. Simple, push button functions gives the user precise LCD digital readouts.
- Incremental encoding detection system with dual digital displays
Automatic power shut-off - Laser plummet for centering of point
- Coaxial tangent and clamp screws provide ease of use in sighting and alignment
- Built-in battery pack can be attached and detached by a single action
- Water resistant, sealed construction
Telescope
- Objective aperture: 1.77 in (45 mm)
- Magnification: 30X
- Image: Erect
- Field of view: 1° 30′
- Resolution: 3”
- Minimum focus: 53 in (1.3 m)
- Stadia constant: 100
Electronic Angle Measurement
- Angle measurement: Absolute Encoding
- Minimum reading: 1” / 5”
- Direction method: H. Both sides, V. Single side
- Accuracy: 5”
- Unit of angle: Deg / mil / gon / V%
- Display: LCD both sides
Tilt Sensor
- Automatic Compensation: Yes
- Range of Compensation: +/-3’
Level Vial Sensitivity
- Plate vial: 30” per 2 mm
- Circular vial: 8’ per 2 mm
Other
Operating voltage, typical: 4.8 VDC
Batteries: 4 x 1.5V (AA)/Rechargeable Ni-MH
Operating Temperature range: -4 °F to +122 °F (-20 °C to +50 °C)
Waterproof class: IP 54
Weight: 10.2 lb (4.6 kg)
Dimensions: 6.5 x 6.1 x 13.4 in (164 x 154 x 340 mm)
| Manufacturer | David White |
|---|---|
| Angle Accuracy | 5 Seconds |
| Plummet | Laser |
| Includes | instrument, sunshade, tool kit, rain cover, plumb bob, carrying case, rechargeable battery pack/charger, alkaline battery tray, user manual |
