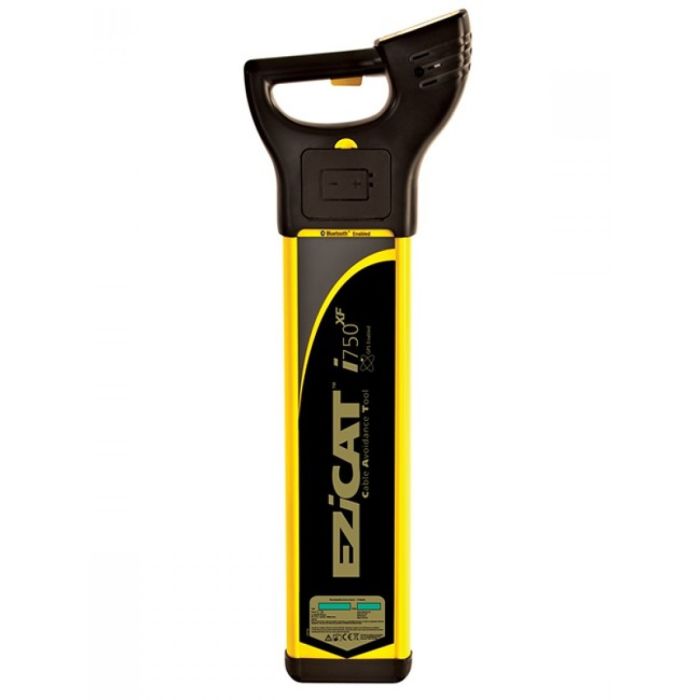

GeoMax EZiCAT i750xf 60Hz Cable & Pipe Locators With GPS Technology And Data Logging
Locator with GPS technology and data logging capability
Increased confidence in cable locating activities
The highly intelligent i750xf locator has fully integrated GPS technology and data logging capability, logging information on how, when and importantly where the locator has been used. This data can help you identify training needs of users and for increased traceability of locating following a near miss, utility strike or similar incident. Giving you increased confidence in your organisations utility locating activities.
You can quickly download the locating data via Bluetooth® to the LOGiCAT software on your PC, Android tablet or mobile phone, then analyse the data using the easy to understand reports.
The i750xf locator, as with all xf-Series locators, has the added benefit of extended low tracing frequencies, making locating and tracing buried utilities over long distances an easy and efficient task.
All EZiCAT locators, have the unique Automatic Pinpointing feature which makes locating buried utilities easy and simple. No need to manually adjust the sensitivity, the locator does this for you automatically. Ensuring that you’re using the ideal sensitivity for the environment you’re locating in.
- Automatic pinpointing
- Fully integrated GPS
- Fully integrated data logging
- Bluetooth® connectivity
- Depth estimation
- Modes:
- Power (default)
- Radio
- Auto
- 8kHz
- 33kHz
- 512Hz
- 640Hz
- Hazard zone
- Pinpoint assist
- Signal strength indicator
- Built-In self test
- Service due indicator
Frequency / Mode Power 50 Hz or 60 Hz; Radio 15 kHz to 60 kHz;
Transmitter 8 kHz and 33 kHz; Auto = Power + Radio modes
Depth Power to 3m; Radio to 2m; Transmitter dependant on transmitter or sonde type
Depth estimation 10% of depth; Line mode – 0.3m – 3m; Sonde mode – 0.3m to 9.99m
Protection IP54
Batteries 6 x AA alkaline (IEC LR6) supplied
Battery life 40 h intermittent use (at 20°C)
Weight & dimensions 2.7kg - 760mm (H) x 85mm (D) x 250mm (W)
Bluetooth® Enabled
Compatibility CSV file compatibility program
Memory size 64Mb memory
GPS type Chipset*: u-blox®GPS, Technical Data: Type: L1 frequency, C/A code
GPS accuracy** Position 2.5m CEP, SBAS 2.0m CEP
GPS start time Cold 34s typical; Warm 34s typical; Hot 1s typical
*All data/information according to manufacturer u-blox®GPS; Cable Detection does not assume any liability whatsoever for such information.
** Accuracy is dependant upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites.
| Manufacturer | Geomax |
|---|
