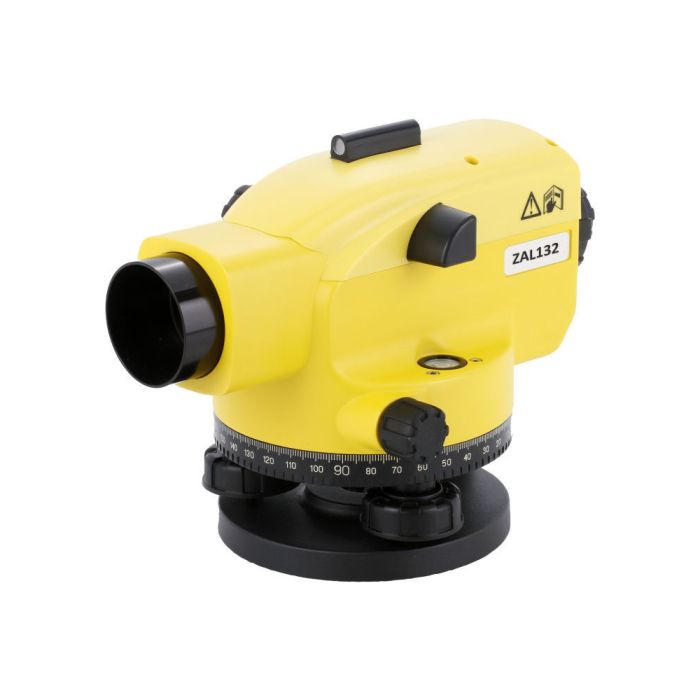

GeoMax ZAL100 Series Automatic Levels
Suitable for outdoor as well as for indoor use the user friendly ZAL100 Auto Level Series from GeoMax is your guarantee to get the job done, accurate and on time.
With the ZAL100 Series GeoMax introduces an automatic level to the construction industry designed for your daily levelling tasks with outstanding price-to-performance ratio. Meeting the IP54 class specifications guarantees all weather operation of the ZAL100 Series and provides you with an instrument that Works when you do!.
Objective aperture - 36 mm clear objective lens
Field of view - < 2.1 m at 100 m
Minimum focusing distance - < 1.0 m
Reticle - Cross hairs, with stadia lines
Stadia multiplication constant - 100
Stadia additive constant - 0
Damping system - Automatic, air-damped
Working range -
Setting accuracy (standard deviation) - < 0.5 ”
Levelling Accuracy
Standard deviation for 1km double-run levelling - 2.0 mm
Horizontal Circle
Diameter - 106 mm
Graduation / Intervals - 360 ° / 1 °
General
Sensitivity of circular bubble - 8 ’ / 2 mm
Mirror for circular level - Plane mirror
Horizontal fi ne motion screws - Double-sided endless drive
Dust and Water resistance - Conforms to IP54 (IEC60529)
Base / Base screw - Concave and fl at / 5/8 ”
Weight - 1.5 kg
Operating temperature range - -20 ° C to +40 ° C
Manufacturer | Geomax |
---|---|
Magnification | 20X, 24X, 32X |
