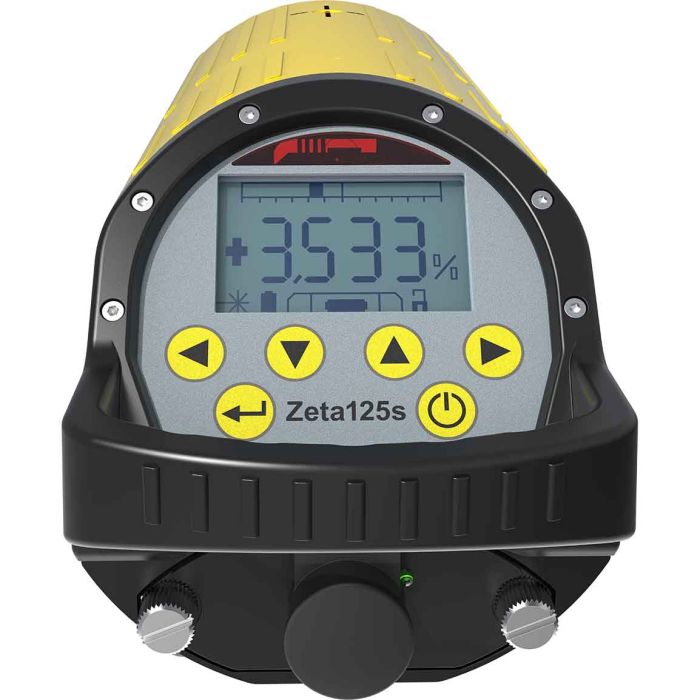

Geomax Zeta125 / 125S / 125G Red or Green Auto Cross Axis Leveling Pipe Laser
With functional and versatile configuration, a full range of features and a tough design, the Zeta series fit all your needs, getting an error-free job done – no matter what the situation or the environmental conditions might be.
With functional and versatile configuration, a full range of features and a tough design, the Zeta series fit all your needs, getting an error-free job done – no matter what the situation or the environmental conditions might be.
Maximum productivity
- Fast self-levelling
- Automatic target alignment
- Cross axis compensation
Maximum robustness
- IP68 submerge proof
- Full metal housing
- Built to last
Maximum flexibility in applications
- Wide range of accessories
- Long distance remote control
- Safe and versatile charging options
- Pipe Laser
- Li-Ion Battery
- International Charger
- Remote Control
- User Manual
- Carrying Case
- Leg Set 150 mm
Zeta125 Zeta 125S
Self-levelling range +45% to -15%
Grade range +40% to -10%
Grade entry Digit select
Grade display 0.001%
Azimuth range Total range 6 m (20 ft) at 30 m (100 ft)
Accuracy ±5 mm at 100 m (± 1/16” at 100’) ; ± 10 arc sec.; ± .005%
Temperature drift 1”/C arc seconds per degree C
Cross axis levelling Manual Automatic (6°)
Vertical level x ✓
Autotarget system x ✓
Manual alignment x ✓
Beam Type/Output Visible laser diode; 635nm; < 5mW; 3R class
Protection class IP68
Power supply Rechargeable lithium ion battery pack
110/230V AC converter (charge and run simultaneously); 12V power cord
Battery life 40h Li-Ion battery
Thread mounting 5/8”
Operating temperature +50°C to -20°C (122°F to -4°F)
Size and weight 305 (12”) x 105 (4.1”) x 113 mm (4.4”); 2.07 kg
Operating range >300m (985’)
Detection angle 20° (12m / 40’ @30m / 100’)
Rotation speed 1250 rpm
Scan length (Azimuth) Narrow mode 1.5 m (5’) @ 30 m (100’);
Wide mode 3.2 m (10.5’) @ 30 m (100’)
| Manufacturer | Geomax |
|---|---|
| Beam Color | Red, Green |
| Includes |
|
