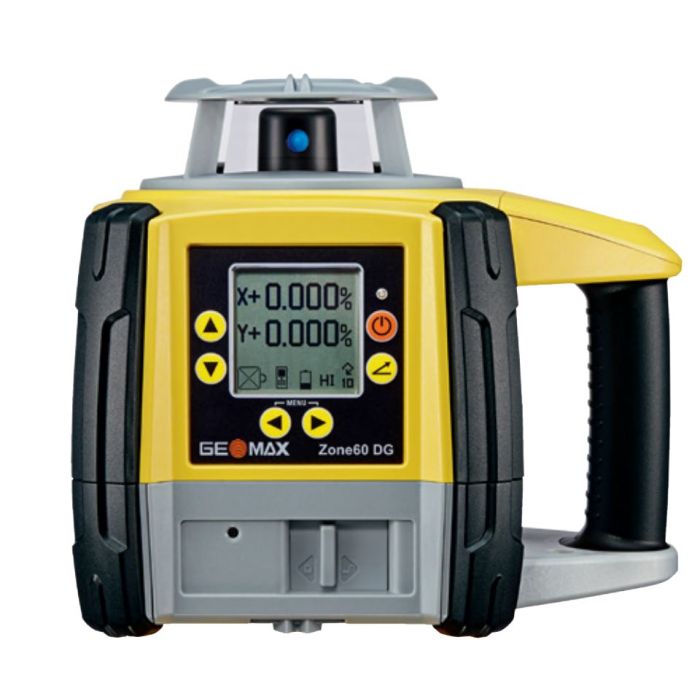

GeoMax Zone60 DG Dial In Dual Grade Rotating Laser

GeoMax Zone60 DG Dial In Dual Grade Rotating Laser

More Views

GeoMax Zone60 DG Dial In Dual Grade Rotating Laser

Manufacturer Part Number(s): 6013528 / 6010666 / 6010667 / 6012187

Email to a Friend

Be the first to review this product

Geomax Authorized Dealer

The new and powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work wherever you are.

All Of Our Instruments Are Calibrated Beyond Factory Specifications

Availability: In stock

$1,949.40

*Package

Optional Certification

NIST Traceable Cert $75.00

* Required Fields

$1,949.40

Qty:

Product Description
Additional Information
Specifications
Reviews (0)

Product Description

Additional Information

Model Number	Zone60 DG
Manufacturer Part Number(s)	6013528 / 6010666 / 6010667 / 6012187
Manufacturer	Geomax
Includes	No
Laser Beam Color	Red
Max Rotating Speed	600 rpm
Laser Orientation	Horizontal Only
Accuracy	1/16" At 100ft
Leveling	Self Leveling
Laser Range	50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft +, 2,500 ft +, 3,000 ft +
Grade Capability	±15%
Grade / Slope	Dual
Grade / Slope Mode	Automatic

Specifications

Reviews (0)

Frequently bought together

Customers who bought this product also commonly purchased the following combination of items.

This Item: GeoMax Zone60 DG Dial In Dual Grade Rotating Laser
SitePro 16-ft Fiberglass Leveling Rod, Inches 11-SCR16-C
$117.00
SitePro 16-ft Fiberglass Leveling Rod, 10ths - 11-SCR16-T
$117.00
GeoMax Heavy Duty Aluminum Square Dowel Quick Clamp Black Flat
$125.00
Total Price $2,308.40

Total Price Excl. Tax: $2,308.40 Incl. Tax: $2,308.40

Customers Who Bought This Item Also Bought

Tree Tags - Write On - Box of 500

$60.00
Leica Rugby CLH Fully Upgradable Laser Level

$1,380.00
Leica Rugby CLA Fully Upgradable Laser Level

$2,000.00
Leica NA2 Precise Automatic 32x Optical Level

$3,300.00

Laser
Color	Red
Wavelength	635 nm
Classification	Class 1
Direction	Horizontal/vertical
Visibility	Visible
Range
Exterior	Up to 3,000 feet (900 meters)
Self Leveling	±6 degrees
Battery/Power
Battery Life with Rechargeable Battery Pack	Up to 40 hours
Power Source	Alkaline or Li-Ion batteries
Battery Life Alert	Yes
Features
Protection Class	IP67 (dustproof and water resistant)
Tripod Adapter (Center Screw Thread)	5/8 x 11
Adjustable Rotating Speed	300, 600 rpm
General
Weight	7.5 lbs. (3.4 kg)
Warranty	3-year
Extra Technology
Remote Control	ZRC60 Remote Control
Detector/Receiver	ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Accuracy
Horizontal	±1/16" at 100 ft (1.5 mm at 30 m)
Vertical	±1/16" at 100 ft (1.5 mm at 30 m)
Temperature
Storage	-22 to 140° F (-30 to 60°C)
Operating	-22 to 122° F (-20 to 50°C)
Functions
Grade Operation	Fully-automatic
Automatic Leveling	Yes
Applications
Checking/Setting Elevations	Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)	Yes
Short-Range Leveling for Decks, Patios & Swimming Pools	Yes
Installation/Leveling Interior Walls	Yes
Squaring and Layout of Partitions, Walls & Tile Floors	Yes
Concrete Forms, Footings and Foundations	Yes
Short-Run Vertical Alignment	Yes
Matching Existing Slope & Grade	Yes
Grade
Type	Dual
Percentage	±15%
