GeoMax Zone60 HG Dial In Dual Slope Rotating Laser
The new and powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work wherever you are.
Pick the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market.
Solid-built and dependable in any element, these lasers have long-lasting operation from multiple charging options with the GeoMax rotating lasers and offer interchange accessories, these lasers accommodate your unique work preference.

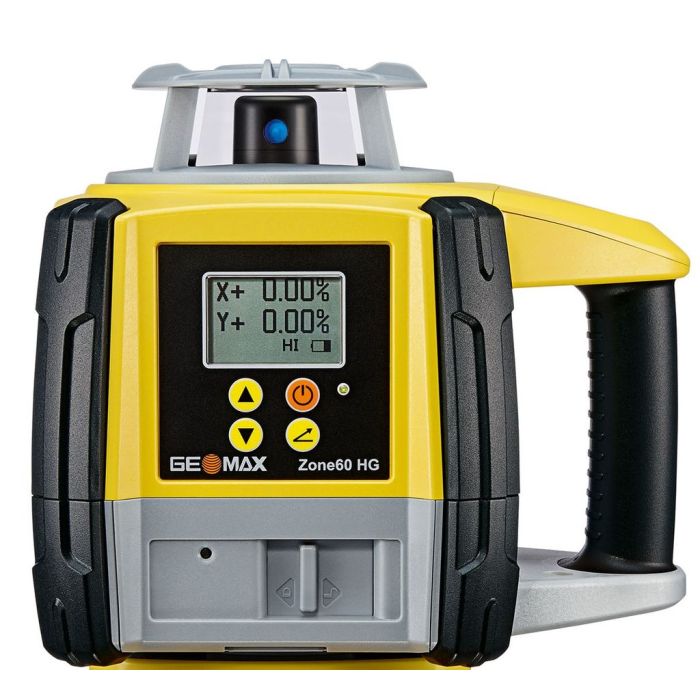

Zone60 HG
Adding easy-to-use, dial-in grade capability to the dependability of the Zone40 H core, this laser is more flexible in use and enables semi-automatic grade in levelling applications.
|
Laser
|
|
| Color | Red |
| Wavelength | 635 nm |
| Classification | Class 1 |
| Direction | Horizontal only |
| Visibility | Visible |
|
Range
|
|
| Exterior | Up to 3,000 feet (900 meters) |
| Self Leveling | ±6 degrees |
|
Battery/Power
|
|
| Battery Life with Rechargeable Battery Pack | Up to 40 hours |
| Power Source | Alkaline or Li-Ion batteries |
|
Features
|
|
| Protection Class | IP67 (dustproof and water resistant) |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
|
General
|
|
| Weight | 7.5 lbs. (3.4 kg) |
| Warranty | 3-year |
|
Extra Technology
|
|
| Detector/Receiver | ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver |
|
Accuracy
|
|
| Horizontal | ±1/16-inch at 100 ft (1.5 mm at 30 m) |
|
Temperature
|
|
| Storage | -22 to 140° F (-30 to 60°C) |
| Operating | -22 to 122° F (-20 to 50°C) |
|
Functions
|
|
| Grade Operation | Semi-Automatic |
| Automatic Leveling | Yes |
|
Applications
|
|
| Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | Yes |
| Short-Range Leveling for Decks, Patios & Swimming Pools | Yes |
| Installation/Leveling Interior Walls | Yes |
| Concrete Forms, Footings and Foundations | Yes |
|
Grade
|
|
| Type | Dual |
| Percentage | ±8% |
| Manufacturer | Geomax |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal Only |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft +, 2,500 ft +, 3,000 ft + |
| Grade Capability | ±8% |
| Grade / Slope | Single |
| Grade / Slope Mode | Semi Automatic |
