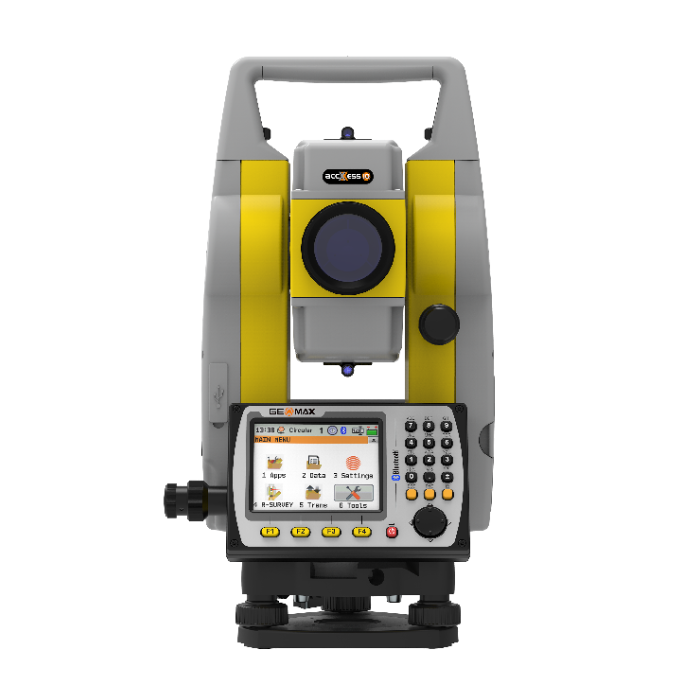

GeoMax Zoom50 Reflectorless Total Station
With the proven accXess technology, the Zoom50 features an intelligent distance measurement engine designed for outstanding range, speed and highest accuracy even under tough conditions.
With the proven accXess technology, the Zoom50 features an intelligent distance measurement engine designed for outstanding range, speed and highest accuracy even under tough conditions.
The longer measurement range means a wider operational coverage and significant less time lost with switching setups. The new PowerLock protection mechanism prevents use by unauthorized persons and makes it hard to steal.
All this in combination with the extra-wide colour touchscreen, inbuilt Bluetooth®, USB memory stick support.
Colour and touch screen
The large 3.5″ (9 cm) Q-VGA display, you'll have a crystal-clear experience. Super fast navigation gets your job done quicker.
Fully featured application package
The Zoom50 includes advanced applications, such as Road 3D and Traverse, making it the true flagship of the GeoMax manual total station family.
Superior accXess10 EDM
With a 1,000 m non-prism range, you are provided the highest reliability and accuracy. Measure the hardest of targets with the pin-size laser beam.
Superior software
With intuitive software built into the Zoom50, you can work in versatile and enhanced applications. PowerLock theft protection makes would-be thieves think twice about swiping your equipment.
Zoom50 neXus5 |
Long-range distance measurement on reflector and >500m non-prism* |
Zoom50 neXus10 |
Ultra long-range distance measurement on reflector and > 1,000 m non-prism* |
ANGLE MEASUREMENTS | |
Accuracy | 1” (0.3 mgon), 2” (0.6 mgon), 5” (1.5 mgon) |
Display resolution | 0.1” / 0.1 mgon |
Method | Absolute, continuous,diametrical |
Compensation | Quadruple axis |
DISTANCE MEASUREMENTS | |
Prism | 3,500 m / 2 mm + 2 ppm |
Long range | 10,000 m / 5 mm + 2 ppm |
Typ. meas. time | 1 s ** |
Non-prism | >500m accXess5 >1000m accXess10 2mm + 2ppm*** |
Footprint | 8 x 20 mm**** |
PHYSICAL SPECIFICATIONS | |
Weight | 5.1 kg (incl. battery & tribrach) |
Operating temp. | – 30°C to 50°C***** |
Protection class | IP55 dust and waterproof |
Humidity | 95 %, non-condensing |
INTERFACE | |
Keyboard | Full alphanumeric, dual face (opt.) |
Display | 3.5” Quarter-VGA color touch screen (320x240 pixel), 10 lines x 30 characters, self heating, illuminated |
Data recording | Internal memory 50,000 pts |
Interface | USB, serial & external power |
Removable memory | USB memory stick |
Bluetooth | Device Class 1 |
POWER SUPPLY | |
Internal battery | Removable Li-Ion |
Operating time**** | 36 h (continous angle), 16h (continous distance measurement every 30 s) |
PLUMMET | |
Type | Laser point, adjustable brightness |
Accuracy | 1.5 mm at 1.5 m instrument height |
OPERATING SYSTEM | |
Microsoft® | Windows embedded CE |
* Optimal conditions to Kodak Grey Card (90 % reflectivity)
** IR-Quick mode
*** >500m: 4 mm + 2 ppm
**** At 50 m distance
***** Optional tested polar version, standard –20°C to 50°C
****** Battery time may be shorter depending on conditions.
Manufacturer | Geomax |
---|---|
Display | Dual |
Bluetooth | Yes |
Reflectorless | Yes |
Angle Accuracy | 1 Second, 2 Seconds, 5 Seconds |
Plummet | Laser |
