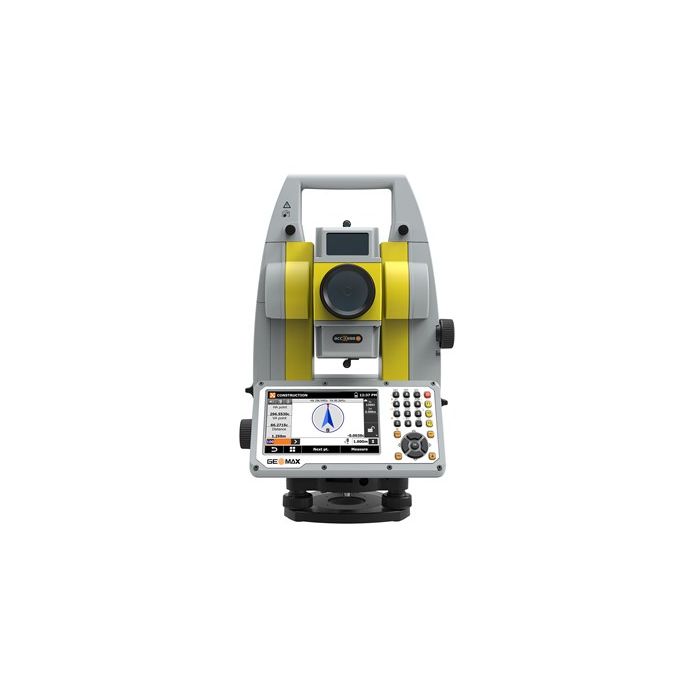

GeoMax Zoom75 Reflectorless Robotic Total Station
The Zoom75 robotic TPS is a smart, affordable choice for both novice and experienced surveyors.
The Zoom75 robotic TPS is a smart, affordable choice for both novice and experienced surveyors. As a reliable one-person total station, the Zoom75 has an optional long-range Bluetooth handle, along with the GeoTRAil function that finds your prism based on the GNSS position transferred from your field controller. Combined with the X-PAD field software, the user-friendly and flexible solution makes it easy to start digitising your construction site.
Modern Data capturing & handling
No more paper plans. Upload your plans onto the X-PAD Ultimate field software or into the TPS, and conveniently edit the CAD drawings on-site on the big screen of the GeoMax robotic total stations. Big files can be handled easily and fast thanks to the strong performing processor of the Zoom75. With the unique X-TILT feature and the Zenius800, inaccessible points are no longer a challenge. X-TILT automatically calculates a point position by tilting the tablet attached to the prism pole, in two directions.
Seamless workflow with maximum flexibility
X-PAD software, GeoMax field controllers and the Zoom75 robotic TPS are carefully chosen and developed to enable a carefree and efficient workflow. X-PAD gives you the flexibility to choose your preferred operating system and field controller as it is available as fully-featured Android ™ and Windows ® field software running on a multitude of field controllers.
One-person total station
Equipped with the long-range Bluetooth® handle, the Zoom75 transforms into a true one-person total station. It supports the advanced prism search, based on the GNSS position of the controller, mounted on the pole. As there is no need for special, expensive and power-consuming active prisms, this total station is ideal on any worksite. Zoom75 keeps your pole lightweight and convenient to carry all survey-day long!
Convenient and safe data management
X-PAD 365, the web-based GeoMax cloud platform, was created to address data management and collaboration challenges surveyors and construction professionals meet every day. Working with the Zoom75, data can be accessed, stored, and shared via the X-PAD 365 File Manager. Your data is always safe, thanks to automatic backups. Furthermore, the Collaborative Survey and Stakeout feature allows several users to work on the same surveying or stakeout project together, sharing real-time surveyed points and drawings and immediately seeing their progress.
Keep X-PAD at its best - select your service
X-PAD Ultimate software is always maintained without any extra costs. By keeping your X-PERT service active, you can continuously profit from the latest software improvements.
Hexagon is known for driving innovation and technological progress. As a part of this group, GeoMax can guarantee that its solutions work when you do.
|Accuracy||1” (0.3 mgon), 2” (0.6 mgon), 3” (1.0 mgon), 5” (1.5 mgon)|
|Method||Absolute, continuous, diametrical|
|DISTANCE MEASUREMENTS TO STD. PRISM ACCURACY/TIME (TYPICAL)|
|Single (fast)||2 mm + 1.5 ppm / 0.8s|
|Standard||1 mm + 1.5 ppm / 2.4s|
|Continuous||3 mm + 1.5 ppm / < 0.15s|
|Range||up to 3500 m|
|DISTANCE MEASUREMENTS - REFLECTORLESS|
|Range||accXess5 / accXXess10
500 m / 1000 m
|Accuracy||2 mm + 2 ppm*|
|Time||Typ. 2-6 sec|
|Precise capture||8x20 mm at 50 m|
|Keyboard||Full alphanumeric; 25 keys; illuminated (2nd optional)|
|Display||5” WVGA 800x480 color and touch with LED backlight|
|Data recording||2 GB internal memory; removable SD card and USB stick|
|Ports||Serial; USB; internal Bluetooth®; long-range Bluetooth handle External power and WLAN|
|Operating system||Microsoft® Windows® EC 7.0|
|GeoTRAil - GNSS based prism search|
|TRack - Automatic prism logging|
|Range||800 m at round prism|
|Max speed||90 km/h at 100m|
|AiM - Automatic prism fine aiming|
|Range||1,000 m at round prism|
|NAVLIGHT ™ - ALIGNMENT AID|
|Range||5 m to 150 m|
|Accuracy||5 cm at 100 m|
|Weight||5.0 - 5.3 kg (w/o battery andtribrach)|
|Operating- / storage temperature||-20° C to 50° C / -40° C to 70° C|
|Protection class||IP55 dust and waterproof rating|
|Internal battery||Removable Li-Ion 4.4 Ah / 7.4 V|
|Operating time||Up to 8 h **|
|Type||Laser point, adjustable brightness|
|Accuracy||1.5 mm at 1.5 m instrument height|
* > 500 m: 4 mm + 2 ppm;
** Battery time may be shorter depending on conditions.
|Angle Accuracy||1 Second, 2 Seconds, 5 Seconds|
