Jamar Technologies RAC Geo II GPS DMI

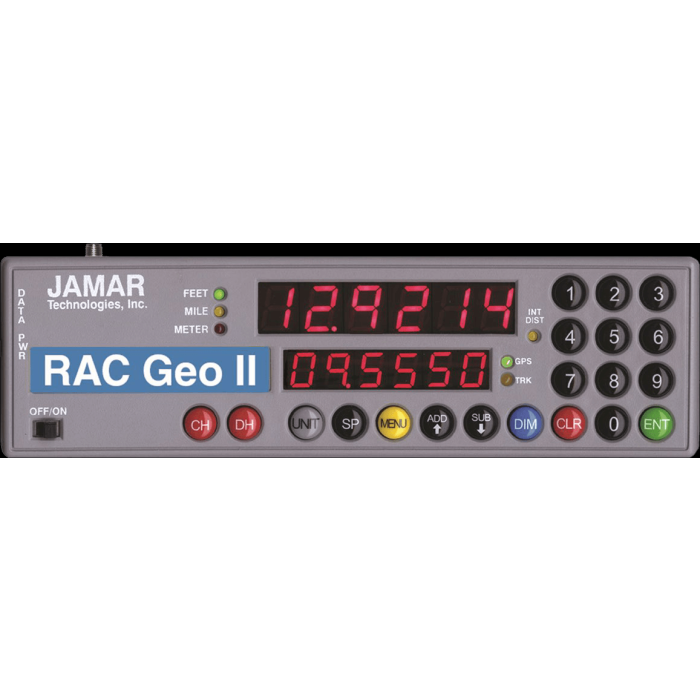

The RAC-Geo-II takes all the benefits of the RAC-Plus-I and adds an on-board GPS receiver and data memory.
The RAC-Geo-II takes all the benefits of the RAC-Plus-I and adds an on-board GPS receiver and data memory. This allows for distance measuring without the need for an external sensor, and for data to be stored to the unit's expansive memory for later download to a computer, creating an unparalleled combination of accuracy & convenience.
This cost-effective unit saves time & money by allowing personnel to measure distance, accurate up to 1 foot per mile, while recording GPS coordinates of roadway features – making it the most powerful DMI on the market.
Detailed analysis and reporting can be done by downloading to the RACPro Software.
GPS Distance Measuring
The RAC Geo II contains a built-in GPS receiver that can be used for distance measuring in place of an external sensor. This reduces your overall cost since you don't have to buy an external sensor. The accuracy of the GPS distance measuring is 1 foot per 1000, which is as good (and usually better)than an OBD plug-in sensor. Should you need the greater accuracy of a magnetic or modular sensor (1 foot per mile), the Geo II does have the option to do distance measuring with either of these external sensors.
Memory
The RAC Geo II will allow you to store up to 400,000 events in memory. Ideal for inventory applications, the Events are identified by using a four digit numeric code (0 thru 9999) to identify signs, guide rails, pavement markings, intersections, railroad crossings or other highway features. Events are stored in nonvolatile RAM (NVRAM). This NVRAM will hold your data for approximately 50 years, or until you clear the memory.
Data Output
Download the stored data to your PC or laptop using our RACPro software. The downloaded data contains the memory location (0-3500), event code(0-9999),distance, interval distance, time and speed for each event.
Record Accurate Distances along with GPS Coordinates
Exclusive only with the RAC Geo II, you are able to store up to 30 hours of continuous GPS data, at one second intervals, while recording roadway distance in the RAC Geo II's internal memory. Using this powerful inventory tool, you can record road features (intersections, bridges, signs, guide-rail, etc.) along with their distance and GPS coordinates.
Unmatched GPS Recording Accuracy
The RAC Geo II uses a GPS receiver which incorporates the Wide Area Augmentation System (WAAS) for improving accuracy of GPS signals. WAAS uses a correction signal created by a collection of 25 land-based stations that are spread out across North America. This correction signal is then broadcast from specialized communication satellites.
With WAAS enabled, our 66 channel GPS receiver capability allows 2D GPS accuracy of approximately 2 meters. Without WAAS, depending on the location in the continental US and satellite accessibility, horizontal GPS accuracy is approximately 6 meters. This, along with the RAC Geo II's distance accuracy of up to+/- 1 foot per mile provides unequaled data collection capabilities.
Several Data Retrieval & Processing Options
There are two methods that can be used to retrieve distance and GPS information from the RAC Geo II.
In its most basic configuration, you can simply record and then read the distance and GPS information off of the RAC Geo II's display. This can be done while the vehicle is stopped, or while it is moving, depending on the number of people doing the data collection.
Another method is to have the RAC Geo II store the events of interest, along with their distance, latitude & longitude, as you key them in. When using this method, the GPS coordinates can be stored every second while roadway events, with their distance & latitude/longitude, are stored as you enter them. This data can then be easily downloaded to the RACPro processing software for analysis, reporting or exporting to external software like Excel or commercially available mapping programs.
Duel Window Display
Where the older RAC-100/200 had only one display window, the new RAC units have dual displays, which provide more information in an easier to understand format. The two 6-digit high-intensity LED display windows allow flexibility in displaying data to you. The upper, larger display window is primarily used to display distance. It is also used to indicate menu locations and time. The lower, smaller display window is used to display count status, speed, interval distance, menu descriptions, event codes, etc.
Menu Driven Commands
One of the advantages of the new dual display in the RAC Geo II is the ability to show more information on the screen. Using this capability has made the unit easier to operate by providing menu driven commands.
The Menu key allows you to select from a variety of functions. After pressing the Menu button, the Add and Sub keys can be used to scroll through the options, which are displayed in the secondary display. To select an option, press the ENT (Enter) key.
Adjustable Brightness Control
RAC Geo II units have a new key function, DIM, which allows you to adjust the brightness level of the display. With this new feature, you can easily adjust the unit's display for various light conditions. The Dim key allows you to select from four (4) levels of display brightness to best suit the ambient light conditions. Full bright is best for daylight conditions while full dim may best suit night conditions. Each time the Dim key is pressed, the brightness will drop one level until the lowest level is reached. It will then jump back to the high brightness level. Both displays, as well as the LED indicators, are controlled by the Dim key.
Store Multiple Calibrations
With the RAC Geo II, you can now store up to four separate calibration numbers in memory. This allows for easy transfer of the unit from one vehicle to another. The RAC Geo II also provides a 4 decimal place calibration for even greater accuracy. It is very common to share one RAC, on a plug-in basis, between a number of different vehicles that have been equipped to accept the instrument. Installing additional vehicle kits on other vehicles is an inexpensive and cost effective means to greatly expand your measuring capabilities. Obviously, each vehicle so equipped would have to be calibrated and the number recorded.
The RAC Plus I and RAC Geo II has the unique ability to store in memory four (4) different vehicle numbers and their associated calibration numbers. If you are moving the RAC from vehicle to vehicle you will need to enter the correct vehicle (unit) number prior to measuring with that vehicle.
When you turn on the RAC Plus I or RAC Geo II, the active calibration number will be displayed in the primary display while the vehicle number is displayed in secondary display. With a few simple steps you can change the calibration to any of the four stored in memory.
GPS Support
With the RAC Geo II you can use the unit's internal GPS receiver to do distance measuring without the need for any external sensor. With this receiver you can not only record accurate distances, but also record GPS coordinates of roadway features – making it the most powerful and flexible DMI on the market. There are several methods that can be used to retrieve distance and GPS information from the RAC Geo II.
In its most basic configuration, you can simply stop at each point of interest and write down the distance, latitude and longitude from the instrument’s digital display. The initial display will show the last 6 digits of the latitude and longitude values. If you press the Enter key, the first three digits of these values is then displayed. The reason the last six digits are shown before the first three digits is that, in most cases, the first three digits of your coordinates will not change during the course of a survey. By showing the last six on the initial screen, you can drive from location to location and write down values without having to press a key on the RAC.
In addition to showing the GPS coordinates on the display, the RAC Geo II can also be used to store the data in internal memory for download to the RACPro software. This provides a quick and efficient method of getting GPS data at multiple locations without having to stop the vehicle.
Larger Memory Size
The older RAC-200 contained 1000 memory locations for storing survey events, which could be assigned codes of up to two digits. The new RAC Geo II unit expands the memory locations to 400,000 and the event code size to four digits.
The RAC Geo II has the unique and exclusive capability to store events in internal memory. In addition, you are able to manually key in numeric codes to identify various events, such as intersections, signs, culverts, bridges, pavement markings, telephone/power poles, pedestals, etc. The numeric code can be up to four (4) digits in length, so you are able to identify up to 10,000 separate events for inventory purposes. This feature makes the RAC Geo II ideal for road inventories, outside plant inventories, asset management and engineering.
RAC-GEO-II
Includes: RAC-GEO-II, mounting brackets, auto adapter power supply, external GPS antenna. Optional RACPro software sold separately.
RAC-GEO-II with Magnetic Distance Sensor & Vehicle Installation Kit
Includes: RAC-GEO-II, mounting brackets, auto adapter power supply, external GPS antenna. Also includes magnetic distance sensor and installation cables. Optional RACPro software sold separately.
RAC-GEO-II with Autolink II OBD Distance Sensor & Vehicle Installation Kit
Includes: RAC-GEO-II, mounting brackets, auto adapter power supply, external GPS antenna. Also includes Autolink Pro OBD distance sensor and installation cables. Optional RACPro software sold separately.
Power: 9 to 16 VDC, negative ground.
Display: Dual 6 digit window, high intensity LED.
Separate LED indicators for unit or measurement and interval distance. Four brightness levels.
Accuracy: +/- 1 foot per mile.
Resolution: 1 foot.
Keyboard: 20 sealed keys, 5 million operation with click & tone feedback. ON/OFF slide switch.
Speed Display: Three digit 0-999 (mph & kph) displayed simultaneous with distance.
Time: Elapsed/Real Time (hh,mm,ss).
Count: Bi-Directional (Up/Down).
Calibration: Automatic & manual with four vehicle calibration and vehicle number ability. Non-Volatile EEPROM Memory.
Test: System check on power up w/display of calibration & vehicle number.
Automatic Distance Conversion: Miles (thousandths) to Total Feet to Meters (kilometers).
Count Hold: Stops accumulation of distance.
Display Hold: Freezes display without loss of distance.
Pre-distance: Capability of starting at known distance or Add/Subtract desired distance value from current distance display.
Interval Distance: Display of distance between selected events & total distance.
Distance Pulse Output: 0-5 VDC, low going high, user selectable interval and duration.
Sensor Error Detection: Checks for sensor error due to vehicle’s dynamic motion.
Memory Retention: Non-Volatile EEPROM for calibration & vehicle numbers — 50+ years retention.
Circuitry: Solid state, surface mount, modular, EEPROM, micro-computer.
Case: ABS non-warping plastic.
Dimensions: 7.8"W x 2.3"H x 1.2" D.
Weight: 6.5 oz.
Operating Temperature: 0°C to 75°C.
GPS: Built-in GPS receiver capable of being used for distance measuring without the need for any other sensor, with accuracy of within 1 foot per 1000 feet.
Memory: 4 MB memory, 400,000 Event locations, 0-9999 Event code identifiers, Distance, Time & Speed, up to 30 hours of GPS data.
Memory Retention: Non-volatile EEPROM, calibration & vehicle numbers.
Data Output: Serial RS-232.
GPS Compatibility: Receive and store GPS coordinates.
WAAS enabled, 12 channel GPS receiver capability allows 2D GPS accuracy of approximately 2 meters.
Without WAAS, depending on the location in the continental US and satellite accessibility, horizontal GPS accuracy is approximately 6 meters.
Warranty: 5-year instrument warranty.
Manufacturer | Jamar |
---|---|
Includes | RAC-GEO-II RAC-GEO-II with Magnetic Distance Sensor & Vehicle Installation Kit |
