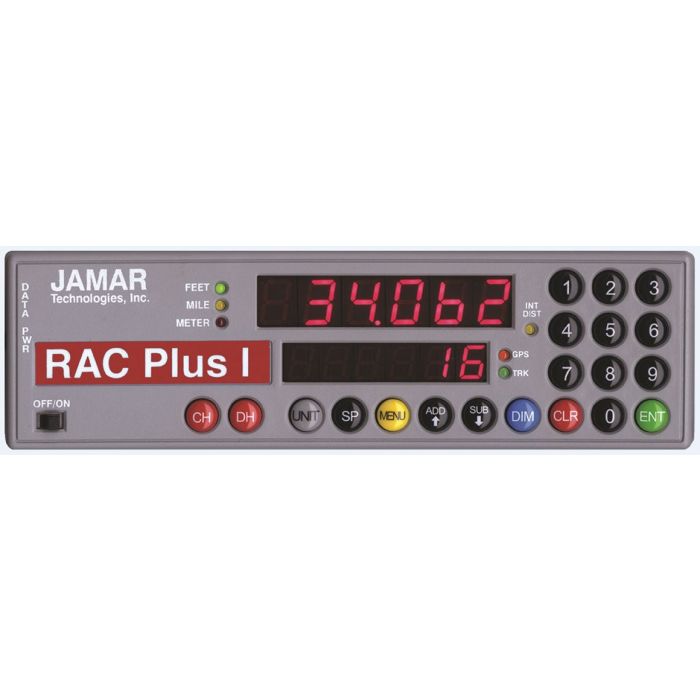

Jamar Technologies RAC Plus I DMI
The RAC-Plus-I DMI is the standard in vehicle installed distance measuring instruments.
The RAC-Plus-I DMI is the standard in vehicle installed distance measuring instruments. It brings the accuracy, reliability and productivity of using a vehicle installed distance measuring instrument within the reach of everyone.
All distance and speed information can be read directly from the RAC Plus I's display - no software is required to view your data.
Shallow Case Design
Light weight, high-impact ABS plastic case (7.8"W x 2.3"H x1.2"D) allows you to mount the DMI to the front of the dashboard or virtually anywhere inside the vehicle.
Dual LED Displays
Dual 6-digit LED Displays are easy to read at any angle both day & night. The dual displays separate distance data from speed, calibration number, vehicle number, time and menu selections.
Four Brightness Levels
Select the level best suited for ambient light conditions.
Simplifies user selection for various operational capabilities.
Allows quick, simple calibration on all vehicles. Stores four separate vehicle calibration numbers for multi-vehicle usage.
Distance measurements accurate to 1 foot per mile, even at slow speeds.
Pre-Distance if starting at a known point, count up/down or add/subtract distance from current display.
Count & Display Hold
Freeze the display while continuing to accumulate distance with Display Hold or stop accumulation of distance with Count Hold.
Display distance intervals between points of interest (i.e. Telephone Poles, Signs, Pavement, Markings, etc.)
With a simple push of the Unit key, convert distance from Feet to Miles to Kilometers.
Distance Pulse Output
Send calibrated distance pulses to a lap top computer or ancillary equipment. The interval and duration of the output signal are user selectable from keyboard.
A power-on self test (POST) is performed each time the DMI is turned on. As part of the POST, the calibration number is displayed for your verification.
Power: 9 to 16 VDC, negative ground.
Display: Dual 6 digit window, high intensity LED. Separate
LED indicators for unit of measurement & interval distance.
Four brightness levels.
Accuracy: +/- 1 foot per mile.
Resolution: 1 foot.
Keyboard: 20 sealed keys, 5 million operation with click & tone feedback. ON/OFF slide switch.
Speed Display: Three digit 0-999 (mph & kph) displayed simultaneous with distance.
Time: Elapsed/Real Time (hh,mm,ss).
Count: Bi-Directional (Up/Down).
Calibration: Automatic & manual w/four vehicle calibration and vehicle number ability. Non-Volatile EEPROM Memory.
Test: System check on power up, display of calibration and vehicle number.
Automatic Distance Conversion: Miles (thousandths) to Total Feet to Meters (kilometers).
Count Hold: Stops accumulation of distance.
Display Hold: Freezes display without loss of distance.
Pre-distance: Can start at known distance or Add/Subtract desired distance value from current distance display.
Interval Distance: Display of distance between selected events & total distance.
Distance Pulse Output: 0-5 VDC, low going high, user selectable interval and duration.
Memory Retention: Non-Volatile EEPROM for calibration & vehicle numbers — 50+ years retention.
Circuitry: Solid state, surface mount, modular, EEPROM, micro-computer.
Case: ABS plastic.
Weight: 6.5 oz.
Dimensions: 7.8"W x 2.3"H x 1.2" D.
Operating Temperature: 32°F (0°C) to 167°F (75°C).
Warranty: 5-year instrument warranty.
RAC Plus I Instrument Only Kit
Includes: RAC Plus I and brackets. Does not include distance sensor or installation kit.
RAC Plus I with Magnetic Sensor and Vehicle Installation Kit
Includes: RAC-PlusI and all equipment needed to install it in a vehicle, including magnetic distance sensor, installation cables and brackets.
RAC Plus I with AutoLink II OBD Distance Sensor
Includes: RAC-Plus-I and all equipment needed to install it in a vehicle, including AutoLink Pro OBD sensor and brackets.
