Johnson Level Electronic Self Leveling Horizontal amp Vertical Rotary Laser with GreenBrite - 40-6544
Johnson's 40-6544 Electronic Self-Leveling Horizontal & Vertical Rotary Laser with GreenBrite Technology is superior for indoor construction laser levels - construction contractors, contractors, finish carpenters and builders LOVE this rotary laser level for the visibility and accurate leveling it provides.
Johnson's 40-6544 Electronic Self-Leveling Horizontal & Vertical Rotary Laser with GreenBrite Technology is superior for indoor construction laser levels - construction contractors, contractors, finish carpenters and builders LOVE this rotary laser level for the visibility and accurate leveling it provides. Electronic self-leveling both horizontally and vertically, with the Green Laser Beam 400% more visible than red beams this makes leveling tasks fast and accurate. Still deciding?
Rotary Laser Level Features:
- Green Beam is 400% more visible than red beam
- Electronically-controlled dual slope feature
- Electronic self-leveling horizontally and vertically
- Laser beam modes include dot, two adjustable line lengths and two rotation speeds
- Two rotational speeds: 200 and 500 RPM
- Visual and audible alarms when beyond leveling range
- Height of instrument/Tilt alarm function ensures product accuracy

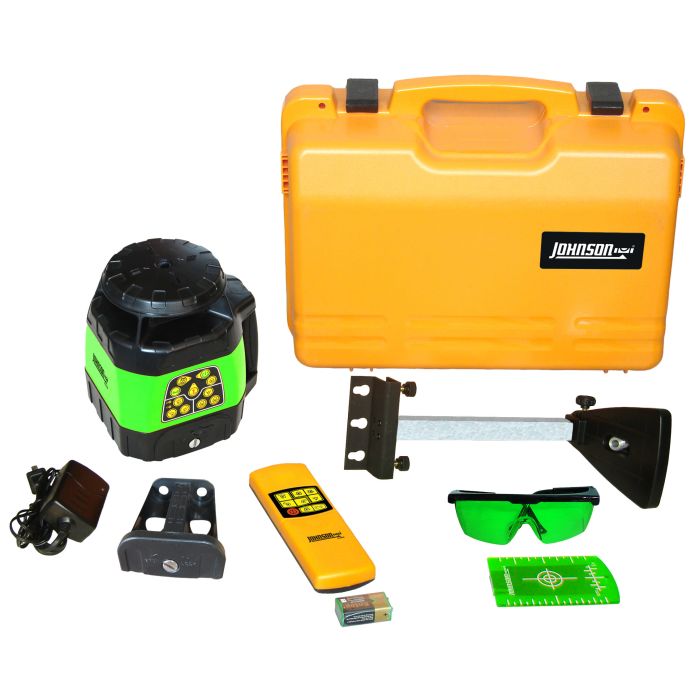

Model 40-6544 includes: Laser, NiMH rechargeable battery pack, alkaline battery compartment (batteries not included), 6.4V battery adapter, remote control with 9V battery, ceiling mount, tinted glasses, target, instruction manual with warranty card and hard-shell carrying case
Leveling Method | Automatic (Electronic) |
---|---|
Laser Wavelength | 532nm +/-10nm (Green) |
Laser Classification | Class IIIa |
Maximum Power Output | <=5mW |
Accuracy | +/-1/8"/100ft. (+/-1.0mm/10m) |
Interior Range | Up to 400ft. diameter (120m) depending upon light conditions |
Exterior Range | Up to 1,200ft. diameter (400m) with detector (not included) |
Remote Range | Up to 200ft. diameter (60m) |
Slope | +/-5 degrees |
Auto-Leveling Range | +/-5 degrees |
Grade Setting | N/A |
Power Supply | NiMH rechargeable battery pack or 6V adapter (included) |
Battery Life | Approximately 24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries (not included) |
Dimensions | 8.62" x 6.29" x 7.95" (219 x 160 x 202mm) |
Weight | 4.4 lbs. (2kg) |
Working Temperature | +32°F to +104°F (0°C to 40°C) |
Center Screw Thread | 5/8"-11 |
Scanning Modes | 0°, 30°, 60° |
Rotation Speeds | 200 and 500 rpm |
IP Protection Class | 54 |
Warranty | 3 years with store receipt |
Manufacturer | Johnson Level |
---|---|
Max Rotating Speed | 500 rpm |
Laser Orientation | Horizontal & Vertical |
Accuracy | 1/8" At 100ft |
Leveling | Self Leveling |
Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft + |
Grade Capability | ±5% |
Grade / Slope | Dual |
Grade / Slope Mode | Manual |
