40-6534
Johnson Level Electronic Self Leveling Horizontal & Vertical Rotary Laser Level - 40-6534
In stock
$1,148.40
Johnson's Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level is great for indoor and outdoor applications - contractors, carpenters and builders love this level for the versatility and superior accuracy it provides.
Johnson's Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level is great for indoor and outdoor applications - contractors, carpenters and builders love this level for the versatility and superior accuracy it provides. Still Deciding?
Rotary Laser Level Features:
- Designed for indoor and outdoor applications
- Electronically-controlled dual slope feature
- Electronic self-leveling horizontally and vertically
- Laser beam modes include dot, two adjustable line lengths and two rotation speeds
- Two rotational speeds: 200 and 500 RPM
- Visual and audible alarms when beyond leveling range
- Height of instrument/Tilt alarm function ensures product accuracy

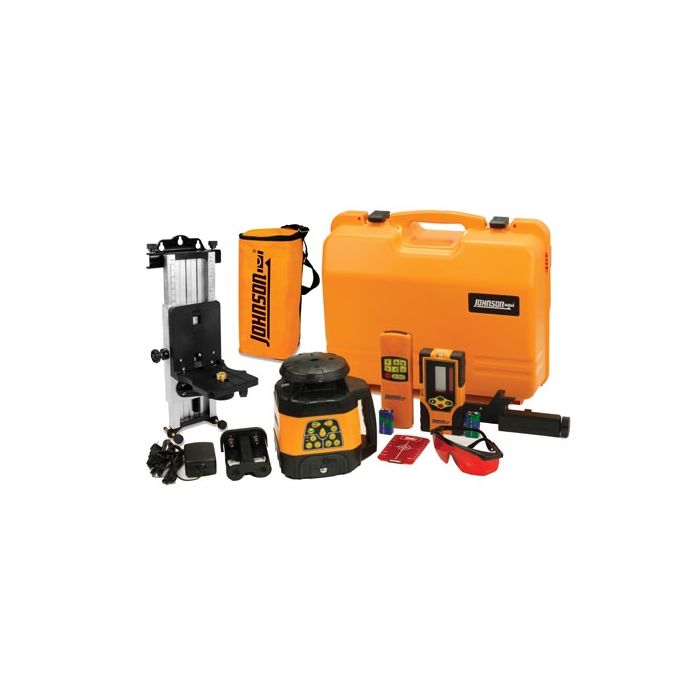

The 40-6534 Electronic Self-Leveling Horizontal & Vertical Rotary Laser Level Includes:
- Rotary laser level
- Detector with clamp and 9V battery
- Multi-function mount
- NiMH rechargeable battery pack
- Alkaline battery compartment (batteries not included)
- Charger
- Remote control with 9V battery
- Tinted glasses
- Magnetic target
- Instruction manual with warranty card
- Hard-shell carrying case
| Leveling Method | Automatic (Electronic) |
|---|---|
| Laser Wavelength | 635mn +/-10nm (Red) |
| Laser Classification | Class IIIa |
| Maximum Power Output | <=5mW |
| Accuracy | +/-1/8"/100ft. (+/-1.0mm/10m) |
| Interior Range | Up to 200ft. diameter (60m) depending upon light conditions |
| Exterior Range | Up to 1,500ft. diameter (500m) with detector (40-6529) |
| Remote Range | Up to 200ft. diameter (60m) |
| Slope | +/-5 degrees |
| Auto-Leveling Range | +/-5 degrees |
| Grade Setting | N/A |
| Power Supply | NiMH rechargeable battery pack (included in 40-6529) or 6V adapter (included) or 4 "C" alkaline batteries (included in 40-6526) |
| Battery Life | Approximately 24 hours with rechargeable battery pack; 40 hours with 4 "C" alkaline batteries |
| Dimensions | 8.62" x 6.29" x 7.95" (219 x 160 x 202mm) |
| Weight | 4.4 lbs. (2kg) |
| Working Temperature | +14°F to +113°F (-10°C to 45°C) |
| Center Screw Thread | 5/8"-11 |
| Scanning Modes | 0°, 30°, 60° |
| Rotation Speeds | 200 and 500 rpm |
| IP Protection Class | 54 |
| Warranty | 3 years with store receipt |
| Manufacturer | Johnson Level |
|---|---|
| Max Rotating Speed | 500 rpm |
| Laser Orientation | Horizontal & Vertical |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft + |
| Leveling | Self Leveling |
| Accuracy | 1/8" At 100ft |
