40-6535
Johnson Level Electronic Self Leveling Horizontal Rotary Laser Level - 40-6535
In stock
$1,009.80
Johnson 40-6535 Electronic Self-Leveling Horizontal Rotary Laser Level is the most popular electronic self-leveling rotary laser due to its 2,000' diameter range and accuracy of 1/16" per 100' versus its cost.
Johnson 40-6535 Electronic Self-Leveling Horizontal Rotary Laser Level is the most popular electronic self-leveling rotary laser due to its 2,000' diameter range and accuracy of 1/16" per 100' versus its cost. This rotary laser level is primarily an outdoor laser level and its best application is determining elevations from a known point of elevation or instrument height. It comes with a detector but you'll want to accessorize with a aluminum grade rod.
Horizontal Rotary Laser Level Features:
- Designed for outdoor use and simple set up
- Electronic self-leveling in the horizontal plane
- Electronically-controlled dual slope feature
- Visual and audible alarms when beyond leveling range
- Single speed rotation 700 RPM
- Slope operation function allows user to perform slope 8° in both x and y axis
- Height of instrument (HI) alarm function ensures product accuracy
- Remote control and detector for one person operation
- Height of Insturment/Tilt alarm function ensures product accuracy

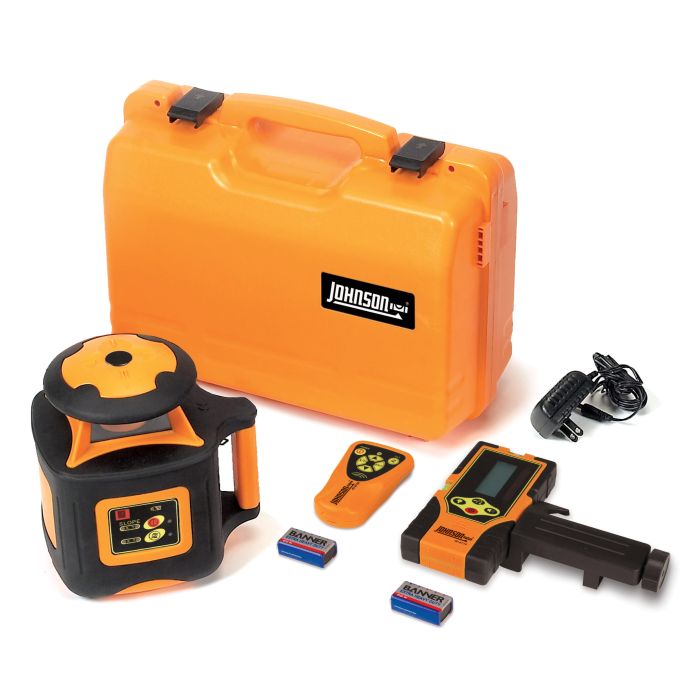

Johnson's 40-6535 Electronic Self-Leveling Horizontal Rotary Laser Level Includes:
- Electronic self-leveling horizontal rotary laser level
- Ni-MH rechargeable battery pack
- 6V battery adapter
- Remote control with 9V battery
- Laser detector with 9V battery and clamp
- Instruction manual with warranty card
- Hard-shell carrying case
| Leveling Method | Automatic (Electronic) |
|---|---|
| Laser Wavelength | 635nm +/-10nm |
| Laser Classification | Class IIIa |
| Maximum Power Output | +/-5mW |
| Accuracy | +/-1/16"/100ft. (+/-1.5mm/30m) |
| Interior Range | Up to 200' diameter (60m) depending on light conditions |
| Exterior Range | Up to 2000' diameter (600m) with detector |
| Remote Range | Up to 200' diameter (60m) with remote |
| Slope | +/-8 degrees |
| Auto-Leveling Range | +/-5 degrees |
| Grade Setting | N/A |
| Power Supply | Rechargeable NiMH battery pack, or 6V adapter (included), 4 "C" alkaline batteries (not included) |
| Battery Life | Approximately 28 hours with rechargeable battery pack; 33 hours with alkaline batteries |
| Dimensions | 7.4" x 5.9" x 8.15" (188 x 150 x 207mm) |
| Weight | 5.51lbs. (2.1kg) |
| Working Temperature | 14F to 113F (-10C to +45C) |
| Center Screw Thread | 5/8"-11 |
| Scanning Modes | N/A |
| Rotation Speeds | 700 rpm |
| IP Protection Class | 66 |
| Warranty | 3 Years |
| Manufacturer | Johnson Level |
|---|---|
| Max Rotating Speed | 700 rpm |
| Laser Orientation | Horizontal Only |
| Laser Range | 50 ft +, 100 ft + |
| Leveling | Self Leveling |
| Accuracy | 1/16" At 100ft |
