40-6690
Johnson Level Electronic Self Leveling Pipe Laser - 40-6690
In stock
$4,356.00
Durable! Accurate! Reliable! Designed for demanding jobsite conditions.
Durable! Accurate! Reliable! Designed for demanding jobsite conditions.
Job Site ToughTM equipment is a must when working in the underground drainage industry where underground elements can be tough on your equipment.
Johnson's Pipe Laser is constructed from cast aluminum and is nitrogen purged, then sealed for total waterproofing. All internal components of the pipe laser are protected with the rugged housing and can handle the toughest and harshest jobsite conditions.
40-6690 Features:
- Large, illuminated LCD display makes information easy to see and use
- Easy grade input to enter by individual digit for quick set-up changes
- Infrared remote control works over long distances providing real time data between remote and pipe laser
- Laser dot center feature automatically centers laser dot on target
- Battery indicator monitors battery level in rechargeable and alkaline battery packs
- Sleep mode turns off laser beam and display

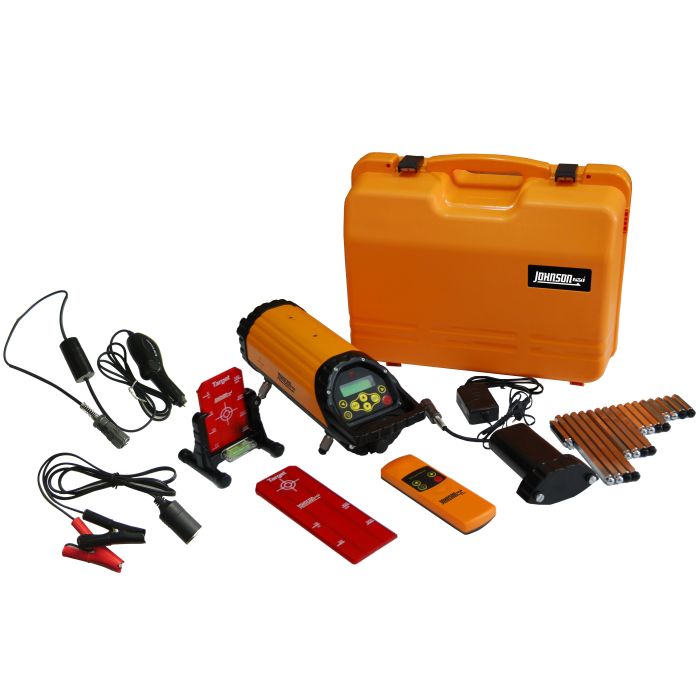

40-6690 Includes:
- Pipe Laser
- NiMH rechargeable battery pack
- Alkaline battery pack (batteries not included)
- Remote control w/9V battery
- Small and large target
- 12V car charger
- 6.4V AC battery adapter
- 5 leg sets
- 3rd leg
- Hard-shell carrying case
Number of Beams | 1 |
---|---|
Leveling Method | Automatic (Electronic) |
Laser Wavelength | 635nm +/- 10nm (Red) |
Laser Classification | Class IIIa |
Maximum Power Output | <=5mW |
Accuracy | +/-1/16"/100-ft. (+/-5mm/100m; +/-10 arc sec) |
Interior Range | |
Self-Leveling Range | +/-5 degrees |
Power Supply | NiMH rechargeable battery pack (included), 6.4V battery adaptor and 12V car charger (included) or 4 "D" alkaline batteries (not included) |
Battery Life | |
Dimensions | 5.19" x 14.96" (132mm x 380mm) |
Weight | 13.2 lbs (6 kg) |
Working Temperature | -4F to 122F (-20C to 50C) |
Center Screw Thread | |
IP Protection Class | 68 Nitrogen Purged |
Warranty | 3 years with store receipt |
Manufacturer | Johnson Level |
---|
