Johnson Level Manual Leveling Rotary Laser Level Kit - 40-6507
In stock
Large and small scan modes achieve an accurate chalk line
Rotary Laser Level Kit Option Features:
- Large and small scan modes achieve an accurate chalk line
- Manual-leveling in horizontal and vertical planes
- Simultaneous 90º split beam in vertical mode
- Scan line can be moved clockwise or counter-clockwise
- Variable rotation speed
- Rugged housing

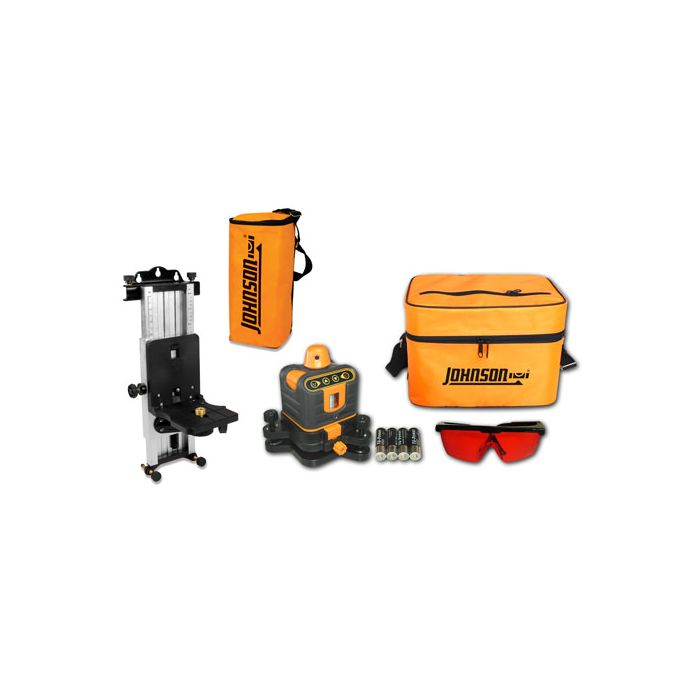

Johnsons 40-6507 Kit Includes:
- Laser
- Multi-function mount
- 4 "AA" alkaline batteries
- Tinted glasses
- Instruction manual with warranty card
- Soft-sided carrying case
| Leveling Method | Manual (Vials) |
|---|---|
| Laser Wavelength | 635nm +/-10nm |
| Laser Classification | Class IIIa |
| Maximum Power Output | <=5mW |
| Accuracy | +/-1/4"/100ft. (+/-2mm/10m) |
| Interior Range | Up to 800' diameter (240m) with detector |
| Exterior Range | Up to 800' diameter (240m) with detector |
| Remote Range | N/A |
| Slope | N/A |
| Auto-Leveling Range | N/A |
| Grade Setting | N/A |
| Power Supply | 4 "AA" alkaline batteries (included) |
| Battery Life | Approximately 15 hours continuous use |
| Dimensions | 5.118" x 5.118" x 6.141" (130 x 130 x 156mm) |
| Weight | 1.653lbs. (.075kg) |
| Working Temperature | 14F to 113F (-10C to +45C) |
| Center Screw Thread | 5/8"-11 |
| Scanning Modes | Big, Small, Dot |
| Rotation Speeds | 150 - 300 rpm |
| IP Protection Class | 54 |
| Warranty | 3 Years |
| Manufacturer | Johnson Level |
|---|---|
| Max Rotating Speed | 300 rpm |
| Laser Orientation | Horizontal Only |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft + |
| Leveling | Manual Leveling |
| Accuracy | 1/4" At 100ft |
