40-6685

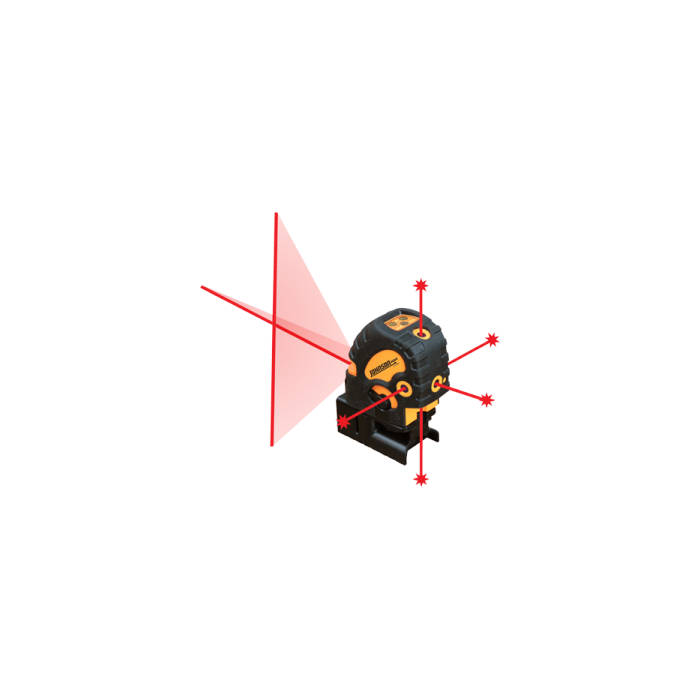

Johnson Level Self-Leveling Combination 2 Line & 5 Dot Laser Level - 40-6685
In stock
Projects five self-leveling beams and two cross-lines simultaneously
- Locking mechanism protects inner pendulum during transportation
- Manual mode allows unit to tilt to extreme angles
- Projects five self-leveling beams and two cross-lines simultaneously
- Able to control beams and cross-lines separately
- Self-leveling with visible and audible alamrs when beyond leveling range
- Laser beam can be set to pulse for use with optional line detector
Johnson's 40-6685 Includes:
- Combination Laser Level
- Multi-funtional magnetic base
- 3 "AA" alkaline batteries
- Mounting strap
- Magnetic target
- Tinted glasses
- Instruction manual with warranty card
- Hard-shell carrying case
| Leveling Method | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength | 635nm+/- 10 nm (Red) |
| Laser Classification | Class llla |
| Maximum Power Output | </=5mw |
| Accuracy | +/- 1/8" / 50 ft. (+/- 1mm/10m) |
| Interior Range | Up to 150 ft. (45m) for lines depending upon light conditions. Up to 200 ft. (60m) for dots depending upon light conditions |
| Exterior Range | Up to 300 ft. (90m) with detector (40-6687 only) |
| Self-Leveling Range | +/- 4 degrees |
| Power Supply | 3 "AA" alkaline batteries (included) |
| Battery Life | Approximately 20 hours continuous use |
| Dimensions | 4.803" x 2.835" x 4.567" (122 x 72 x 116mm) |
| Weight | 1.869 lbs (0.7 Kg) |
| Working Temperature | 14 to 113 degrees F (-10 to 45 degrees C) |
| Center Screw Thread | 5.8 " - 11 on base; 1/4 " - 20 on laser |
| IP Protection Class | 54 |
| Warranty | 3 years with store reciept |
| Manufacturer | Johnson Level |
|---|---|
| Range | 25 ft +, 50 ft +, 75 ft +, 100 ft +, 200 ft +, 300 ft + |
| Number of Points | 5 Points |
| Number of Lines | 2 Lines |
