40-6516
Johnson Level Self Leveling Rotary Laser Level Kit - 40-6516
In stock
Self-leveling in the horizontal plane
Rotary Laser Level Kit Option Features:
- Self-leveling in the horizontal plane
- Locking mechanism protects inner pendulum during transportation
- Manual-leveling in the vertical plane with 90° split beam
- Visual and audible alarms when beyond leveling range
- Laser rotates at 200, 400, 600 RPM
- Illuminated vertical vial

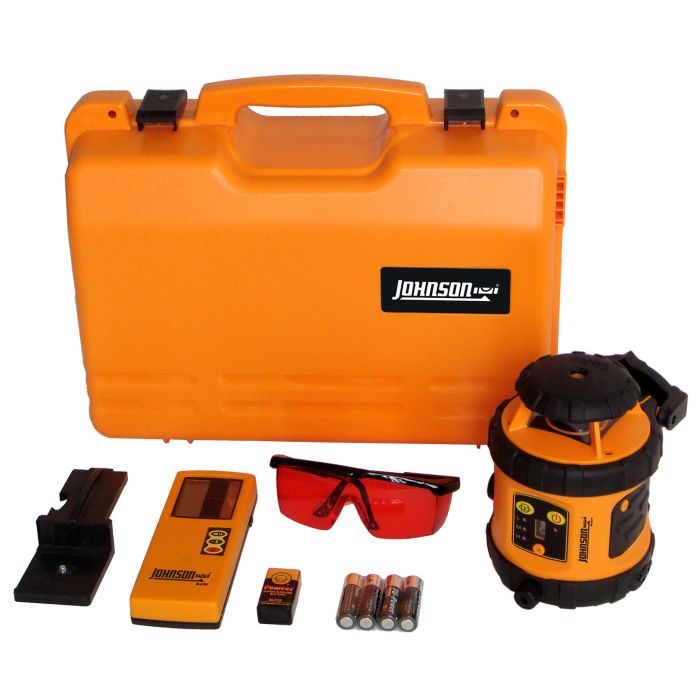

Johnson's 40-6516 Includes:
- Self-Leveling Rotary Laser Level
- Tinted glasses
- 4 "AA" alkaline batteries
- Detector with 9V battery and clamp
- Instruction manual with warranty card
- Hard-shell carrying case
| Leveling Method | Self-Leveling (Pendulum) |
|---|---|
| Laser Wavelength | 635nm +/-10nm |
| Laser Classification | Class IIIa |
| Maximum Power Output | <=5mW |
| Accuracy | +/-1/8"/100ft. (+/-1mm/10m) |
| Interior Range | Up to 800' diameter (240m) with detector |
| Exterior Range | Up to 800' diameter (240m) with detector |
| Remote Range | N/A |
| Slope | N/A |
| Auto-Leveling Range | +/-3 degrees |
| Grade Setting | N/A |
| Power Supply | 4 "AA" alkaline batteries (included) |
| Battery Life | Approximately 20 hours continuous use |
| Dimensions | 4.96" x 6.69" x 6.61" (126 x 170 x 168mm) |
| Weight | 3.3 lbs. (1.5kg) |
| Working Temperature | 14F to 113F (-10C to +45C) |
| Center Screw Thread | 5/8"-11 |
| Scanning Modes | N/A |
| Rotation Speeds | 200, 400, 600 rpm |
| IP Protection Class | 54 |
| Warranty | 3 Years |
| Manufacturer | Johnson Level |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal Only |
| Laser Range | 50 ft +, 100 ft +, 250 ft + |
| Leveling | Self Leveling |
| Accuracy | 1/8" At 100ft |
