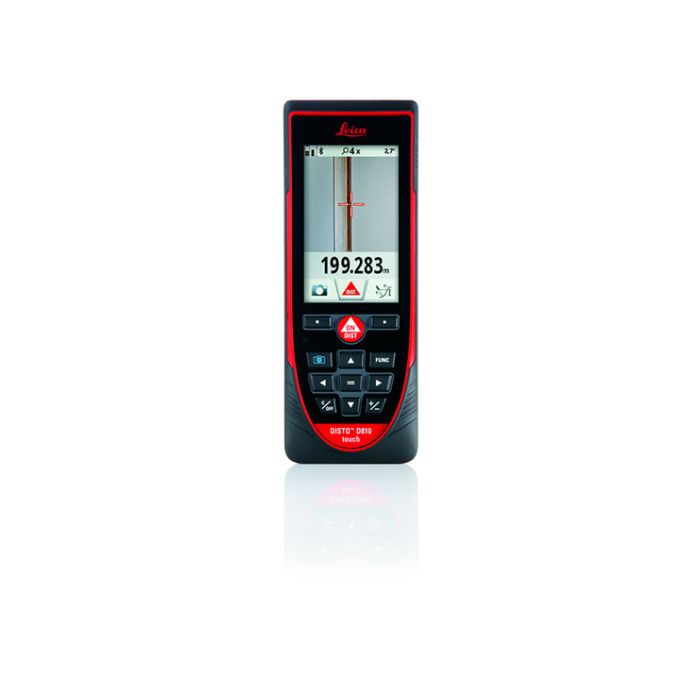

Leica DISTO D810 Touch Laser Distance Meter
The Leica DISTO™ D810 Touch is a 15 measurement mode LDM accurate to 1/16th of an inch.
The Leica DISTO™ D810 Touch is a 15 measurement mode LDM accurate to 1/16th of an inch. It features a touch screen UI, integrated digital camera, a tilt sensor, and Bluetooth Smart.
The D810's exclusive Measure in Picture (MIP) technology can determine the height, width, area, diameter, or circumference of an object in a picture taken by the D810. Bracket your target using pointers on the touch screen to remotely measure the width of a second story window, the area of a billboard, or the diameter of an above-ground tank.
With a 600'-plus range, the D810 Touch can acquire a target that is well beyond your eye's ability to see the laser point, especially outside. The point finder -- a 4x zoom digital camera with cross hairs on the LCD display -- solves this problem.
The farther you can shoot, the more obstacles there are to get in the way. Smart Horizontal allows you to shoot over obstacles so you can measure the level horizontal distance to your target.
At distance, even a small wobble in the tool translates to the laser point bouncing in wide arcs on your target. For best results when measuring long distances, keep your dot steady with a tripod and an adapter . The D810 Pro Pack includes a D810, a TRI70 Tripod, Leica's patented FTA360 Fine Tune Adapter, and a hard case to keep it all organized.
|ISO 16331-1 certified typical measuring accuracy||± 0.04 in|
|ISO 16331-1 certified typical measuring range||up to 660 ft*|
|Measuring units||0.000 m, 0.0000 m, 0.00 m, 0.00 ft, 0'00" 1/32, 0.00 in, 0 in 1/32|
|Power Range Technology||Yes|
|Pointfinder with 4x zoom||Yes|
|Photograph file format||.jpg|
|Memory||Last 30 displays|
|Windows Software||DISTO Transfer with AutoCAD® plugin|
|Free App||iOS / Android|
|Data interface*||Bluetooth® V4.0 Smart|
|Measurements per set of batteries||up to 4000**|
|Multifunctional end-piece||Automatic recognition of measurement position|
|Tripod thread||¼”- 20|
|Protection class||IP 54 - splash water/ dust proof|
|Dimensions||6.4 x 2.4 x 1.2 in|
|Weight with batteries||8.5 oz|
* Depending on ambient light and reflectivity of the target surface.
