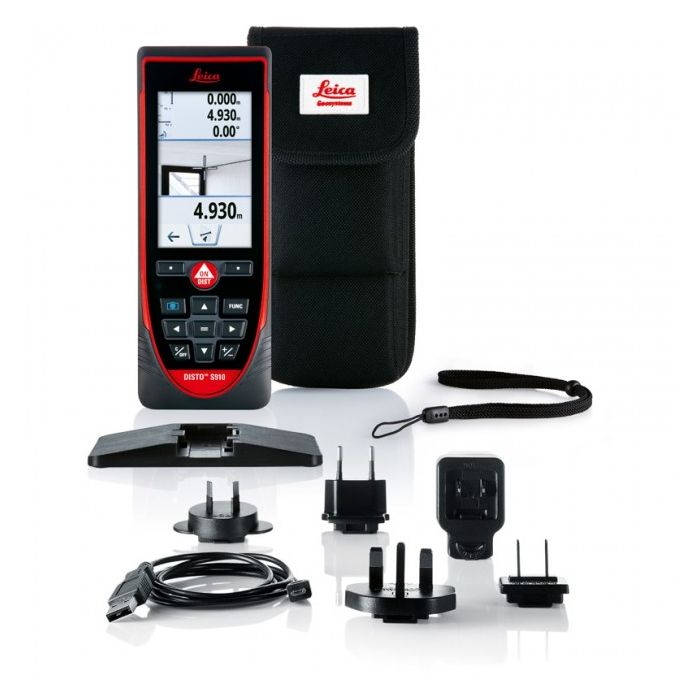

Leica DISTO S910 300m Laser Distance Meter
Measure fast and precise distances between any two points from one location with the laser distance meter Leica DISTO™ S910. Create easily as-built documentation, calculate roof dimensions, integrate data into BIM or CAD software for even 3D visualizations. This improved workflows save valuable time and money – all this at ranges of up to 300 m.
Measure fast and precise distances between any two points from one location with the laser distance meter Leica DISTO™ S910. Create easily as-built documentation, calculate roof dimensions, integrate data into BIM or CAD software for even 3D visualizations. This improved workflows save valuable time and money – all this at ranges of up to 300 m.
- Integrated Smart Base for P2P Technology
- Pointfinder with 4x zoom for easy targeting
- X-Range Power Technology for highest measurement performance
- 360° tilt sensor
- DXF data capture
- Real-time data transfer with WLAN
- Bluetooth® Smart
- Free App – Leica DISTO™ sketch
| Measure from point to point with P2P Technology The integrated Smart Base enables to measure distances (e.g. widths and tie distances) between any two points, angles and inclinations at the same time from one location. Thus, you’ll never have to reach for inaccessible areas again, enabling even the most complex measurement task to be quickly, accurately, and safely carried out. |
||
| Capture measurement data in CAD format The Leica DISTO™ S910 can save all the measured points into a DXF file as a floor plan, wall layout or 3D point coordinates that can be downloaded to a PC via the USB interface. Shorten the workflow, save money and avoid mistakes: because it’s completely digitalised. Writing errors are a thing of the past. |
||
| Real-time transfer of point data Transfer measurement data directly on site over the WLAN interface to a portable computer for further processing in your preferred software. Create a documentation or check a lay-out in real-time and transmit as many measurement points as you like – with or without pictures. |
||
| 300 m range with X-Range Power Technology With the innovative X-Range Power Technology on board the Leica DISTO™ S910 represents the measuring technology of the future. It achieves ranges of up to 300 m and guarantees the best measuring performance even to poorly reflecting objects. |
| Technical specifications: | |
| Typical measuring accuracy | ± 1 mm |
| Range | 0.05 up to 300 m |
| X-Range Power Technology | • |
| Measuring units | m, ft, in |
| Distance in m Ø of the laser dot in mm |
10, 50, 100 m 6, 30, 60 mm |
| Smart Base measuring range Horizontal Vertical |
360° -40° to 80° |
| Distance in m Typical tolerance of the P2P function |
2, 5, 10 m 2, 5, 10 mm |
| Levelling range | ± 5° |
| Pointfinder with 4x zoom | • |
| Overview camera | • |
| File format | jpg, dxf |
| Memory for CAD files | 20 files, each with 30 points |
| Free software for Windows | • |
| Free App | iOS / Android |
| Data interface* | Bluetooth® Smart, WLAN |
| Measurements per set of batteries | up to 4000** |
| Batteries | Li-ion rechargeable |
| Charging time | 4h |
| Protection class | IP 54 |
| Dimensions | 164x61x32 mm |
| Weight with batteries | 290 g |
*) System requirements and other details can be found at https://www.disto.com/
**) Reduced in Bluetooth® or WLAN mode
| Manufacturer | Leica |
|---|
Leica DISTO S910 Manual
