Leica Disto X3 500' Laser Distance Meter
Rugged design for tough conditions
Construction Site Proof
The Leica DISTO™ X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.
Smart Room
New Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app* allow you to quickly create scaled floor plans on your smartphone or tablet.
* in app purchases
Point to Point Measurement
The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.
Rotatable Display
The Leica DISTO™ X3 display automatically rotates in line with the measurement direction. This means you can always read your measurement results from any angle.
Intuitive
Easy to use buttons and functions make working with the DISTO™ X3 fast and intuitive.
Your DISTO™ X3

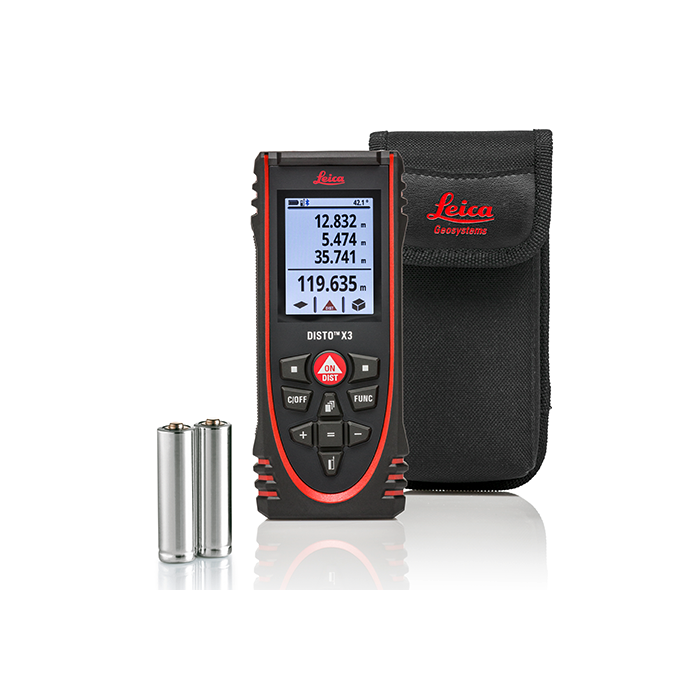

The DISTO™ X3 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included.
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm |
| Range (ISO 16331-1 certified) | 0.05 up to 150 m |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Tilt sensor | Yes |
| Tilt sensor accuracy to the housing | ± 0.2° |
| Smart Base measuring range Horizontal Vertical |
360° for use with Leica DST 360 |
| Typ. tolerance of P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m |
| Levelling range | 5° for use with Leica DST 360 |
| Memory of last measurement | 20 |
| DISTO™ transfer for Windows | Yes |
| DISTO™ Plan app for iOS and Android | Yes, includes in app purchases |
| Smart Room function support | Yes |
| General data interface | Bluetooth® Smart |
| Data interface for 3D point data | Bluetooth® Smart |
| Measurements per set of batteries | up to 4'000 (reduced when used with Bluetooth®) |
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
| Multifunctional endpiece with automatic reference detection | Yes |
| Batteries | 2x AA Alkaline |
| Protection class | IP 65 |
| 2m drop tested | Yes |
| Dimensions | 132 x 56 x 29 mm |
| Weight with batteries | 184g |
| Art. No. | 850833 |
| EAN / UPC | 7640110697054 |
| Manufacturer | Leica |
|---|
Leica Disto X3 Manual
