Leica Disto X4 500' Laser Distance Meter With Built in Camera
Designed for bright, outdoor environments
Outdoor Measuring
The Pointfinder camera allows you to precisely target and measure distant objects in bright sunlight. The target object shows clearly on the DISTO™s high-resolution screen.
Truly Robust
This DISTO™ is drop-tested up to 2 m in height, water jet and dust protected. Its IP65 rating means you can clean it under running water.
Point to Point Measurement
Transform your DISTO™ X4 into a real measurement station with the DST 360. It allows you to measure distances between any two points, from one position.
Quality Feel
The all-new DISTO™ X4 only uses the best quality materials to ensure consistent measurement results in different environments. A precision product you can trust.
Horizontal Measurements
Distance and tilt measurements allow you to determine horizontal distances with absolute precision. Use your laser measurement data to automatically generate realistic and scaled floor plans.
Document and Visualise
The Leica DISTO™ Plan app* allows you to document and visualise your measurements. The Smart Room function makes it possible to create accurate floor plans simply by taking clockwise or counter-clockwise room measurements.
* in app purchases
Auto-Rotate Display
The display automatically rotates in line with the orientation of the device; allowing you to easily read the screen from any angle.
Your DISTO™ X4

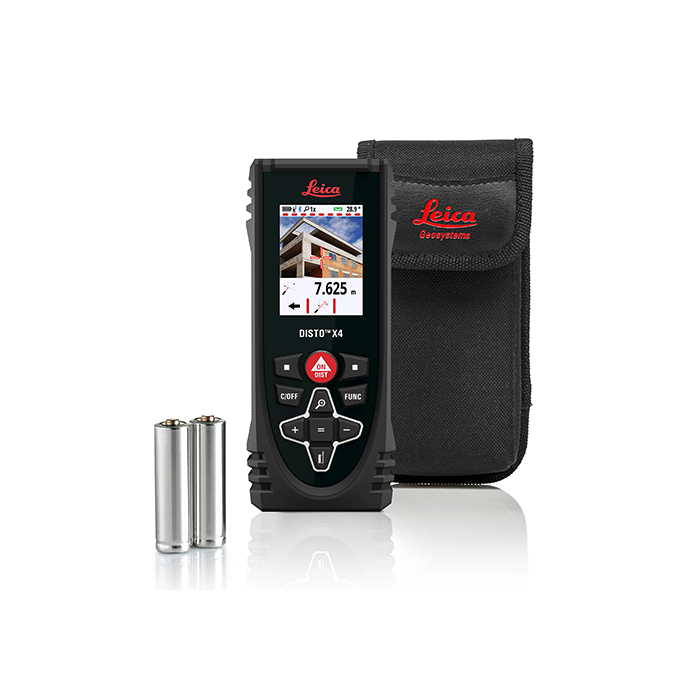

The DISTO™ X4 is specifically designed to make high-precision outdoor measurements an easy task. It comes with a holster, hand loop and batteries.
Other Outdoor Measuring Solutions
The Leica DISTO™ Pointfinder camera overcomes the challenge of long-distance, outdoor laser measurements. We therefore offer a wide range of DISTO™ devices with an integrated Pointfinder camera. Discover the outstanding features of the DISTO™ D510, D810 touch, and S910.
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm |
| Range (ISO 16331-1 certified) | 0.05 up to 150m |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Tilt sensor | Yes |
| Tilt sensor accuracy to the housing | ± 0.2° |
| Smart Base measuring range Horizontal Vertical |
360° for use with Leica DST 360 |
| Typ. tolerance of the P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m |
| Levelling range | 5° for use with Leica DST 360 |
| Pointfinder with zoom | 4x |
| Memory of last measurement | 20 |
| DISTO™ transfer for Windows | Yes |
| DISTO™ Plan app for iOS and Android | Yes, includes in app purchases |
| Smart Room function support | Yes |
| General data interface | Bluetooth® Smart |
| Data interface for 3D point data | Bluetooth® Smart |
| Measurements per set of batteries | up to 4'000 (reduced when used with Bluetooth®) |
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
| Multifunctional endpiece with automatic reference detection | Yes |
| Batteries | 2x AA Alkaline |
| Protection class | IP 65 |
| 2 m drop tested | Yes |
| Dimensions | 132 x 56 x 29 mm |
| Weight with batteries | 188g |
| Art. No. | 855107 |
| EAN / UPC | 7640110697887 |
| Manufacturer | Leica |
|---|
