Leica LINO L2-1 L2s-1 Self Leveling Cross-Line Laser
The time consuming and tedious drawing of lines on the wall is a thing of the past. The Leica Lino L2 projects exactly, quickly and easily – allowing you to concentrate on the job in hand.
The time consuming and tedious drawing of lines on the wall is a thing of the past. The Leica Lino L2 projects exactly, quickly and easily – allowing you to concentrate on the job in hand.
- Pulse function with power-saving mode
- Modern, ergonomic housing
- Exact 90° angle
- Large glass lens
- Very easy to use
Horizontal aligning
Spirit levels and string lines are a thing of the past; now the Leica Lino L2 is the convenient way to transfer reference points from one wall to another.
Vertical aligning
Here the large glass lens shows what it’s made of: the simple way to ensure that wall and floor tile joints precisely meet one another.
Exact 90° angle
Alignment tasks such as marking out 90° angles are done at the touch of a button. Saving you real time!
Aligning at an angle
You can manually switch off the self-levelling feature using the lock function. The laser line can then be projected at any angle. The lock function also serves as transport protection.
Working in very bright conditions
The pulse function is not just an energy-saving mode: it also allows you to locate the laser lines using a laser detector, even in very bright lighting conditions. A series of acoustic signals from the detector indicates the precise position of the laser beam plane.
Leica LINO L2s-1 | Leica LINO L2-1 | |
Range* | 25 m / 85 ft | 25 m / 85 ft |
Range with laser receiver* | 80 m / 265 ft | 80 m / 265 ft |
Levelling accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33ft | ± 0.2 mm/m / ± 0.0079 in @ 33ft |
Self-levelling range | ± 4° | ± 4° |
# of laser lines | 2 | 2 |
Beam direction | vertical, horizontal | vertical, horizontal |
Horizontal line accuracy | ± 0.3 mm/m / ± 0.0118 in @ 33ft | ± 0.3 mm/m / ± 0.0118 in @ 33ft |
Vertical line accuracy | ± 0.3 mm/m / ± 0.0118 in @ 33ft | ± 0.3 mm/m / ± 0.0118 in @ 33ft |
Laser type | 635 nm/class 2 | 635 nm/class 2 |
Battery type | Li-Ion rechargeable (or AA 3 x 1.5V) | AA 3 x 1.5V |
Operating time** | up to 44 h (Li-Ion) | up to 13 h (AA) |
Protection class | IP54 | IP54 |
Dimensions | 110 x 60 x 100 mm / 4.33 x 2.36 x 3.94 in | 110 x 60 x 100 mm / 4.33 x 2.36 x 3.94 in |
Weight with batteries | 530 g / 1.17 lbs | 500 g / 1.10 lbs |
Tripod thread |
1/4" |
1/4" |

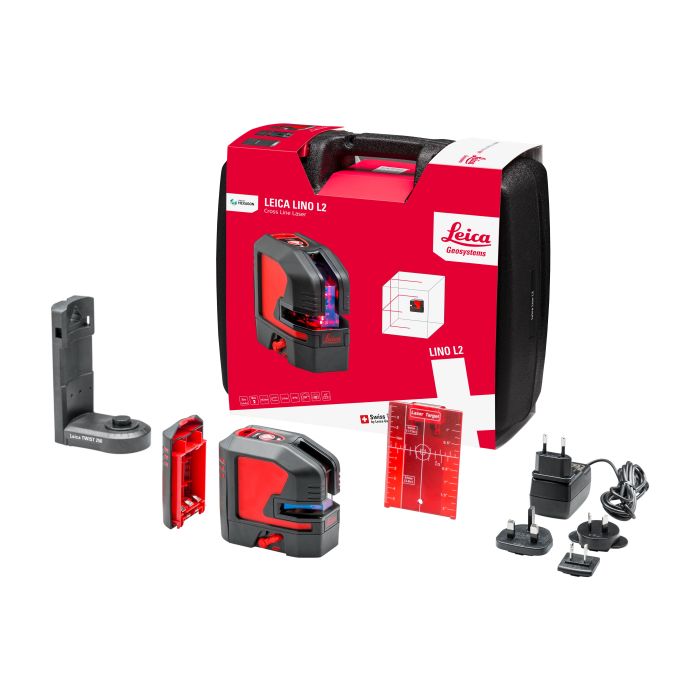

Scope of delivery | Leica Lino L2, TWIST 250, Li-Ion battery pack, charger, Alkaline battery tray, target plate, hard case |
Leica Lino L2, |
*depending on lighting conditions
**depending on laser mode
Manufacturer | Leica |
---|---|
Range | 25 ft +, 50 ft +, 75 ft +, 100 ft +, 200 ft + |
Number of Lines | 2 Lines |
