Leica Lino P5 Self Leveling 5 Beam Point Red Dot Laser
The Leica Lino P5 projects five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient.
- Modern, ergonomic housing
- Self-levelling
- Power Range Technology™
- Practical multifunction adapter
- Very easy to use
Self-levelling
It is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignments of ± 4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines. Errors are prevented!
Setting out right angles
The Leica Lino P5 has five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient.
Aligning
In addition to the plumb beams, the Leica Lino P5 projects three points at exactly the same height. Aligning windows, partition walls and other building elements becomes quick and easy.
Transferring measured points
Turn the rotatable adapter to transfer reference points in no time at all across the room from one wall to another. Leave your spirit level and string line in your toolbox!
Expanded range of applications
The adapter supplied with the Leica Lino P5 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets.
Range* | 30 m / 100 ft |
Levelling accuracy | ± 0.2 mm/m / ±0.0079 in @ 33 ft |
Self-levelling range | ± 4° |
# of laser dots | 5 |
Beam direction | up, down, forward, right, left |
Dot accuracy | ± 0.2 mm/m / ±0.0079 in @ 33 ft |
Laser type | 635 nm/class 2 |
Battery type | AA 3 x 1.5V |
Operating time** | up to 37 h (AA) |
Protection class | IP54 |
Dimensions | 110 x 60 x 100 mm / 4.33 x 2.36 x 3.94 in |
Weight with batteries | 530 g / 1.17 lbs |
Tripod thread |
1/4" |

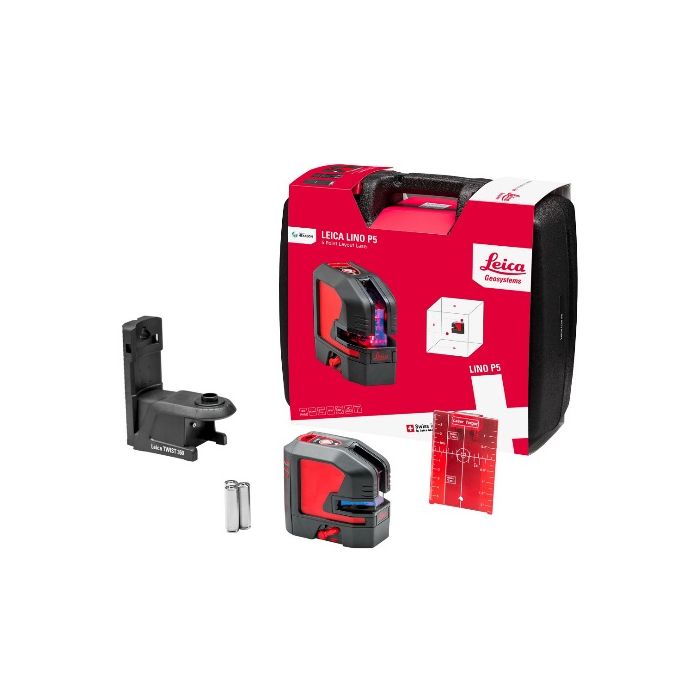

Scope of delivery | Leica Lino P5, TWIST 360, Alkaline battery tray, batteries, target plate, hard case |
*depending on lighting conditions
**depending on laser mode
Manufacturer | Leica |
---|---|
Beam Color | Red |
Range | 25 ft +, 50 ft +, 75 ft +, 100 ft + |
Number of Points | 5 Points |
