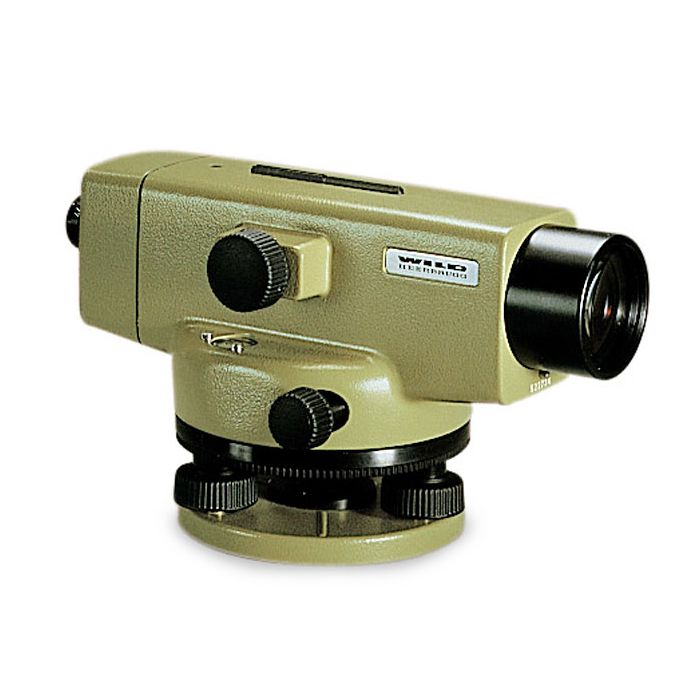

Leica NA2 Precise Automatic 32x Optical Level
Precision Levels for all your stringent requirements.
The Leica NA2 meets all the requirements of precision levelling. As soon as it is set-up on a tripod and levelled with the bubble, the automatic compensator ensures that the line of sight is horizontal so that each staff reading is reliable.
Leica's top-class optical quality gives the NA 2 a bright, erect high contrast image.
Features:
- Push button compensator check
- Endless horizontal drive for left and right handed users
- Coarse and fine focusing knob
- Play-free footscrews
- Optional eyepieces available
- Top-class optics
To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 the ideal precise level for deformation studies or industrial measuring tasks.
Technical Data |
NA2 |
Accuracy* | 0.7 mm (dependent on staff, technique) 0.3 mm (with parallel-plate micrometer) |
Magnification | standard: 32x FOK73 eyepiece (optional): 40x |
Shortest focusing distance |
1.6 m |
Compensator setting accuracy |
0.3'' |
* Per 1km double run
To improve accuracy a parallel plate micrometer can be fitted over the telescope objective. The parallel plate micrometer permits direct readings to 0.1mm and estimated readings to 0.01mm. This makes the NA2 an ideal precise level for deformation studies or industrial measuring tasks.
Manufacturer | Leica |
---|---|
Accuracy | 1/32" At 100ft |
Magnification | 32X |
