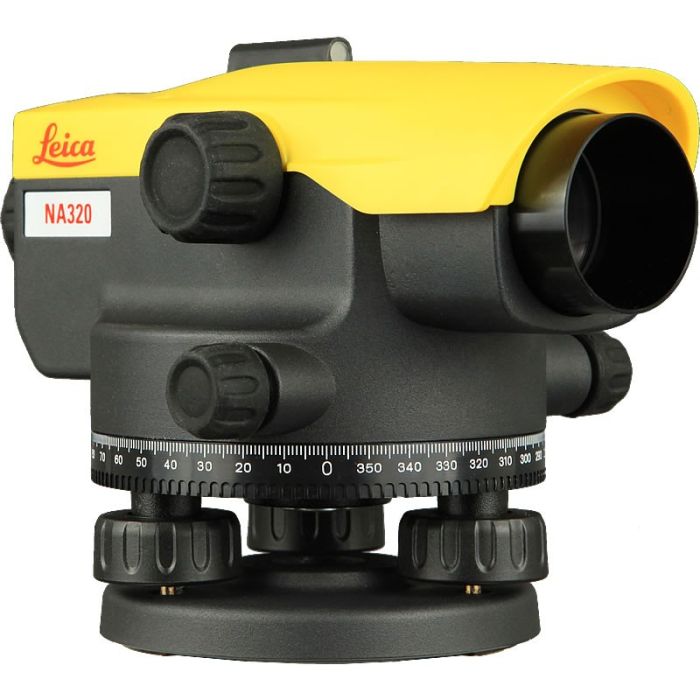

Leica NA320 Automatic 20x 360° Optical Level
Automatic levels for daily levelling tasks.
Unique. Accurate. Simple.
Professionals face many obstructions on site. Whatever the levelling challenge, Leica NA300 Series levels overcome. Rely on the known expertise of Leica Geosystems for the best quality and perfor-mance. On your terms, on your site, Leica Geosystems and the Leica NA300 Series are your trusted partners for accurate measurements every time.
Whether you´re facing basic demands or you need more support, the unique design of the Leica NA300 Series of automatic (optical) levels can meet you wherever you are in the building and construction field. With a better protected shape, these rugged levels offer increased ergonomic handling while ensuring you receive the highest quality results at the best price value.
Leica NA300 Series levels have been engineered for daily levelling tasks. Whatever the need, these levels measure with the highest precision and accuracy. These automatic (optical) levels provide the highest in both while being ergonomic in their handling and rugged for daily use in the harshest conditions.
A perfectly designed mirror makes it extremely easy to adjust the horizontal level with the highest possible accuracy and confidence. The Leica NA300 Series levels - along with all our automatic (optical) levels - are made for everyday use for any site.
More than 270 Leica Geosystems Service Centres worldwide ensure you work with complete peace of mind, wherever a construction site is located on the globe. Leica Geosystems offers unbeaten service with all of its NA Series levels. The IP54 standard ensures the highest quality measurements even in the most challenging environments.
- Quick and easy measurements
- Unique design and highest quality of results for levelling needs
- Manufactured for the most rugged sites and the harshest conditions
- Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
- Unbeaten service offering
|Standard deviation for 1 km double levelling (ISO17123-2)||2.5 mm||2.0 mm||1.8 mm|
|Magnification||20 x||24 x||32 x|
|Objective aperture||36 mm|
|Shortest target distance from instrument axis||< 1.0 m|
|Field of view at 100 m||< 2.1 m|
|Additive constant 0||0|
|Working range||± 15’|
|Setting accuracy (standard deviation)||< 0.5’’|
|Sensitivity||8’ / 2 mm|
|Weight (net)||1.5 kg|
|Operating temperature range||–20°C to +40°C|
