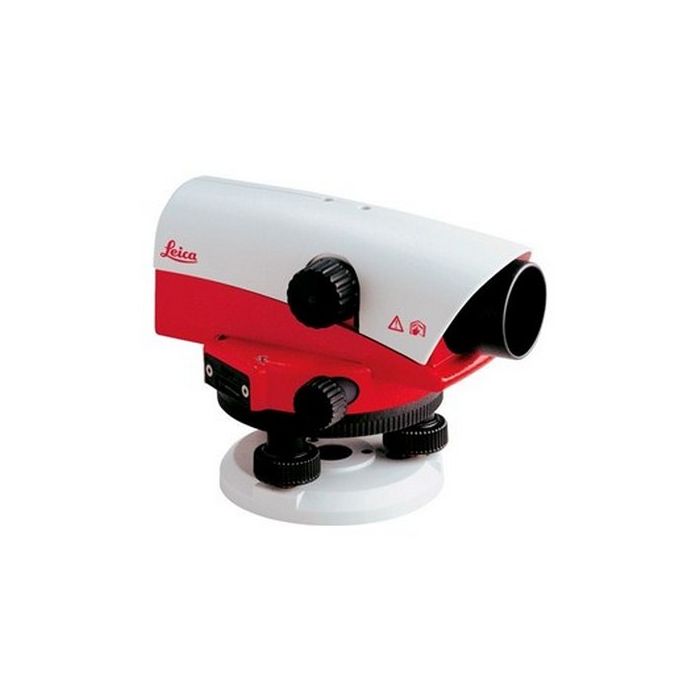

Leica NA724 Automatic 24x Optical Level
Build for builders, engineers and surveyors levels.
Overview for the Leica NA724 24X Automatic Level
Built for surveyors and construction professionals, the Leica NA724 Automatic Level with 24x magnification measures highly accurate horizontal plane and 360-degree angle. Great for installing foundation, fence building, landscaping and more, this optical instrument has a built-in compensator with 0.5 arc-second precision and 1/16 inch accuracy at 100 feet.
Best in Class Optics
With a minimum target distance of up to 1.64 feet, the NA724 enables you to work in the tightest conditions. Its superior optics presents an upright image and provides better contrast to reduce eye strain, enhanced measuring in extreme light conditions and accurate aiming. The Leica auto level also features a large focusing knob and double-sided endless drives for precise targeting.
Choose Your Preference
When reading the horizontal circle, you can choose between degrees or gons. For easy targeting, the horizontal circle and circular bubble are positioned next to the telescope and the external sight. The NA700 series can also be mounted on a flat or dome head tripod.
High Quality Design
The Leica NA724 auto level can withstand a short drop onto the ground, exposure to dust, a fall into water and vibrations caused by heavy construction machines. It also features tight seals and a gas-filled telescope for protection against water immersion.
Features for the Leica NA724 24X Automatic Level
- 24x magnification
- 1.64-foot minimum focusing distance
- 1/16 inch accuracy
- 0.5 arc-second compensator accuracy
- Selectable 360 degrees/400 gons horizontal circle
- Large focusing knob
- Double-sided endless horizontal drives
- Adjustable resistant foot screws
- Gas filled telescope
- IP57 dust and water resistant
- Shock resistant
- 5/8-11 tripod thread
|Weight||3.52 lbs (1.6 kg)|
|Protection Class||IP57 (protected against dust and water immersion)|
|Units of Measure||Degrees/gon, selectable|
|Time||1.64 ft. (0.5 m)|
|Leveling||1/16 in. at 100 ft. (1.2 mm at 30 m)|
|Diameter of Objective||1.41 in. (36 mm)|
|Bubble Vial||10' / 2mm|
|Operating||-4°F to +122°F (-20°C to +50°C)|
|Storage||-40°F to +158°F (-40°C to +70°C)|
|Accuracy||1/16" At 100ft|
