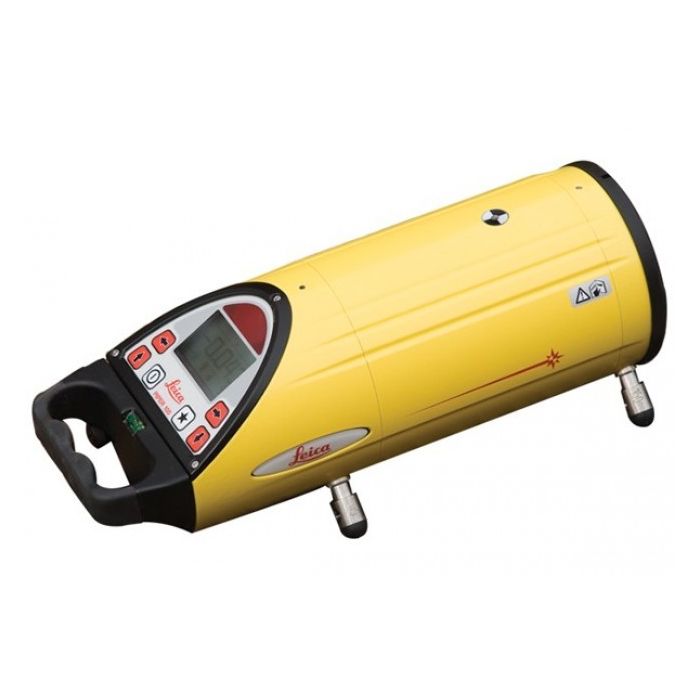

Leica Piper 200 Self Leveling Pipe Laser
The Leica Piper series of pipe lasers are perfect for: storm and sanitary sewer construction, gravity flow pipe line and anywhere grade and line are required with a single beam.
Powerful and compact, the Leica Piper is the only pipe laser that fits inside a 100 mm (four inch) pipe. It is built with solid cast-aluminum housings, and is loaded with features that will improve productivity and minimize downtime on the jobsite.
It is ideal anywhere line and grade is required. It has a large clear display that makes it easier for contractors to read grade, line position, battery status, and level indication. The intelligent battery monitors the amount of charge/discharge so that contractors always know how much battery life they have left. The Leica Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances. Automatic grade compensation easily identifies and corrects grade errors. It automatically self-levels over a full grade range, and eliminates the need to tip the laser for steep slopes.
The Piper 200 features the Alignmaster function, a patented automatic targeting system that searches and finds the target for fast second day setups.
Technical Specifications
Features | Piper 200 |
Beam | Highly visible red beam |
Display | Large, easy to read LCD display |
Alignmaster* | Yes |
Line and Grade Locks | Yes |
Wide Line Adjustment | Yes |
Self-levelling | Over full range |
Grade entry | Direct or by digit |
Remote control | Yes, wireless |
Housing | Rock solid metal |
Battery pack | Rechargeable Lithium-Ion |
Waterproof | 100% |
Laser Diode | 635 nm (red) |
Laser Output | 4.75 mW maximum |
Working Range | 200 m (650 ft) |
Grade Range | -10 % to +25 % |
Self-leveling Range | -15 % to +30 % |
Line Movement | 6 m at 30 m (20 ft at 100 ft) |
Battery* | Lithium-Ion, 7.4 V/3.8 Ah |
Operation/Charge | 40 h/4 h |
Operating Temperature | -20° to +50° C (-4° to +122° F) |
Dimensions (diameter x length) | 96 mm x 267 mm (3.8 in x 10.5 in) |
Weight | 2 kg (4.4 lbs) |
Construction | Cast aluminium |
Seal | IPX8 |
Wireless Remote | Front, up to 150 m (500 ft) Back, up to 10 m (35 ft) |
Manufacturer | Leica |
---|
