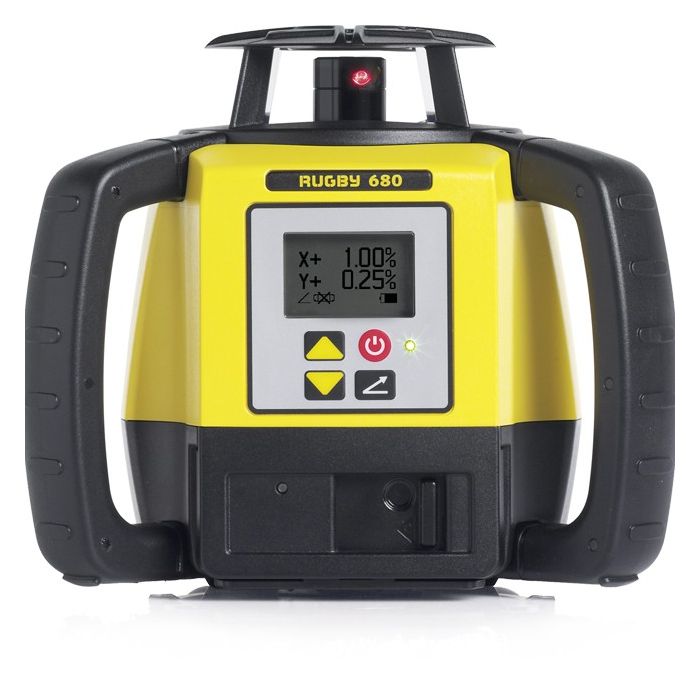

Leica Rugby 680 Horizontal with Semi-Automatic Direct Dial Dual Slope Laser Level
The Leica Rugby 680 Laser Level is an excellent semi-auto general dual grade construction laser level with digital efficiency. This new laser squares, aligns and levels faster and easier than ever before increasing work performance by eradicating errors and downtime.
The Leica Rugby 680 Laser Level is an excellent semi-auto general dual grade construction laser level with digital efficiency. This new laser squares, aligns and levels faster and easier than ever before increasing work performance by eradicating errors and downtime.
Foundations and footings work such as pad placement, framework levelling and concrete forming have never been more simple or efficient. The new Scan 90 feature makes layouts quicker allowing the beam to move to the left or right. It also has an automatic plumb down function and sleep mode which conserves power without losing any setup information.
The Leica Rugby 680 includes a dial-in grade when used in dual or single axis mode and can be operated easily and quickly at the touch of a button. A unique Smart Slope feature will continue to monitor temperature and time to make sure performance and accuracy are maintained throughout its use.
The NEW Leica Rugby 680 laser level is tough, fast and part of the Leica 600 series range which are known for their suitability on all types of construction work. The Rugby 680 laser is protected to IP67 dust and water protected and has a glass cage and tough housing which gives ultimate protection. It has rubber handles for grip, a large high contrast LCD display and a simple, easy to understand user interface. H-I and Bump alert feature alerts the operator of any disturbances and when the grade is used the smart slope function will continue to monitor in order to make sure accurate time and temperature results are provided all day long.
Enhance the Leica Laser Rugby 680 with additional plug and play accessories. Charge and use at the same time with the environmentally friendly A170 Solar Panel, power from a vehicle with a car charger or any battery with the 12v battery cable. Increase performance when used with a Rod Eye receiver such as the 140 Classic or 160 Digital.
Technical data | Leica Rugby 680 |
Dimensions | 212 × 239 × 192 mm |
Weight | 2.56 kg / 5.6 lbs |
Functionality | Self-levelling horizontal, dial-in grade in dual axis |
Product type | Semi-auto grade |
Laser class | Class 2 |
Laser type | 635 nm (visible) |
Plumb up | - |
Measured at 20°C (horizontal / vertical) |
± 1.5 mm at 30 m (1/16" at 100 ft) |
Grade range | ± 8% DG |
Smart Slope | Yes |
Rotation – RPS | 10 |
Scanning – degrees | - |
Scan90 | - |
Beam down | - |
Sleep mode | - |
Range (diameter) – Basic | 600 m (2.000 ft) |
Range (diameter) – RE140/160 | 800 m (2.600 ft) |
RF remote control (diameter) | - |
Li-Ion batt. / hours operation | 40+ |
Alkaline batt. / hours operation | 60+ |
Working temperature range | –20 to +50 °C (–4 to +122 °F) |
Storage temperature range | –40 to +70 °C (–40 to +158 °F) |
Seal (both excluding and including battery pack) |
IP67 |
Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) |
Manufacturer | Leica |
---|---|
Max Rotating Speed | 600 rpm |
Laser Orientation | Horizontal Only |
Leveling | Self Leveling |
Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft + |
Grade Capability | ±8% |
Grade / Slope | Dual |
Grade / Slope Mode | Semi Automatic |
