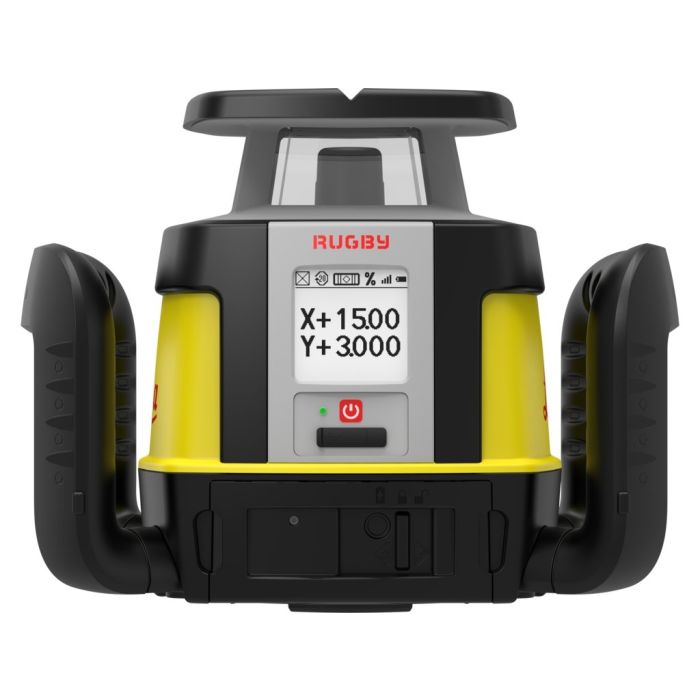

Leica Rugby CLA Fully Upgradable Laser Level
With the unique capability to adapt to any application needs through software upgrades, the Leica Rugby CLA is the first upgradable laser to maximised productivity and performance on-site.
The Right Choice For Every Application On Site
With the unique capability to adapt to any application needs through software upgrades, the Leica Rugby CLA is the first upgradable laser to maximised productivity and performance on-site. The upgrade options deliver the unmatched performance in any levelling, aligning and squaring tasks, making it a true all-rounder.
Base unit - Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.
Upgrade options
CLX 250 – with manual slope function, slope catch and slope lock, this upgrade makes slope applications, such as ramps and driveways a simple and efficient task
CLX 500 – enabling rotation vertically, the CLX 500 makes the Rugby CLA fit in batterboard, interior and other alignment applications
CLX 600 – adding +-15% fully automatic grade functionality in single axis with a dial-in option, the upgrade delivers the most reliable performance in single slope applications
CLX 700 - adding +-15% fully automatic grade functionality in second axis with a dial-in option, the upgrade delivers the most reliable performance in dual slope applications
CLX 800 – with 20 rps head speed and multiple laser operation via one combo, this upgrade delivers the best results when working with machine guidance system
| Warranty | 5Y/2Y knockdown |
| Grade capability* (X/Y Axes) | 15% |
| Self-leveling accuracy** | ± 1.5 mm at 30 m (± 1/16" at 100 ft) |
| Self-leveling range | ± 6° |
| Operating range with Combo, RE 140/160 | 1350 m diameter |
| Remote range | 600 m diameter |
| Laser class | 2 |
| Environmental standard | IP68/MIL-STD-810G |
| Operating temperature | -20 °C to +50 °C -4 °F to +122 °F |
| Storage temperature | -40 °C to +70 °C -40 °F to +158 °F |
| Rotation speed | 0, 2, 5, 10, 15, 20 RPS |
| Batteries (Li-Ion) | Li-Ion |
| Battery operating time** | 50 h |
| Battery charging | 5 h (full charge) 1 h fast charge = 8 h operating |
| Dimensions (H × W × D) | 230 mm / 9.1 in 296 mm / 11.7 in 212 mm / 8.3 in |
| Weight with batteries | 3.9 Kg / 8,5 lbs |
| * Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality | |
| Manufacturer | Leica |
|---|---|
| Max Rotating Speed | 1200 rpm |
| Laser Orientation | Horizontal & Vertical |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft + |
| Grade Capability | ±25% |
| Grade / Slope | Dual |
| Grade / Slope Mode | Automatic |
