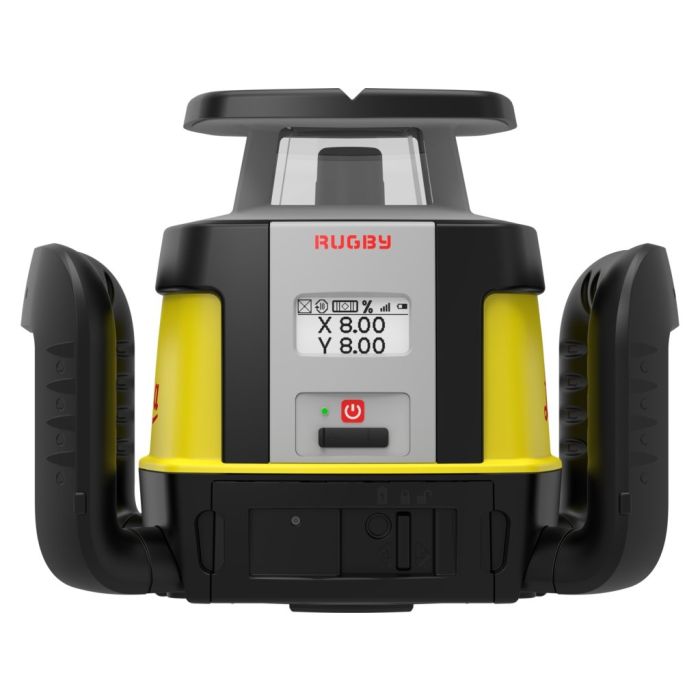

Leica Rugby CLH Fully Upgradable Laser Level
Leica Rugby CLH simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive.
The Leica Rugby CLH Horizontal Laser Level offers maximum flexibility by enabling construction professionals to upgrade its capabilities to match their application needs. Simplifying applications is one its features, which saves time for a more productive work. Its one-button operation allows for effortless use and saves time by simplifying application.
This Leica rotary laser level is a Class 1 laser that projects horizontal points and has a grade capability of 8%. With the Leica CLC Combo remote and rod eye 140/160, it can operate a range of 4,400 feet (1350m). The CLH horizontal laser can self-level with an accuracy of 1/16-inch at 100 feet and self-leveling range of ± 6 degrees.
The Rugby CLH laser is made durable with the IP68 protection class, which makes it great for outdoor applications. It can work up to five hours with a fully charged battery and only takes an hour to fully charge with its fast charging capability. This device can also be used with the CLC remote or receiver up to a range of up to 2,000 feet.
Base unit - Use it as a simple to operate, one-button horizontal laser for concrete and formwork levelling, height checking and transferring, and land levelling applications.
| Upgrade options | CLX 200 | CLX 300 | CLX400 |
| Manual Slope Dual Grade | ✓ | ✓ | ✓ |
| Slope Catching & Monitoring | ✓ | ✓ | ✓ |
| Beam Masking | ✓ | ✓ | ✓ |
| Single Semi-Auto Grade Dial-In 8% | ✓ | ✓ | |
| Dual Semi-Auto Grade Dial-In 8% | ✓ |
| Warranty | 5Y/2Y knockdown |
| Grade capability* (X/Y Axes) | 8% |
| Self-leveling accuracy** | ± 1.5 mm at 30 m (± 1/16" at 100 ft) |
| Self-leveling range | ± 6° |
| Operating range with Combo, RE 140/160 | 1350 m diameter |
| Remote range | 600 m diameter |
| Laser class | 1 |
| Environmental standard | IP68/MIL-STD-810G |
| Operating temperature | -20 °C to +50 °C -4 °F to +122°F |
| Storage temperature | -40 °C to +70 °C -40 °F to +158 °F |
| Rotation speed | 10, 15, 20 RPS |
| Batteries (Li-Ion) | Li-Ion |
| Battery operating time** | 50 h |
| Battery charging | 5 h (full charge) 1 h fast charge = 8 h operating |
| Dimensions (H × W × D) | 230 mm / 9.1 in 296 mm / 11.7 in 212 mm / 8.3 in |
| Weight with batteries | 3.8 Kg / 8,3 lbs |
| * Up to 45° with adapter. ** Accuracy defined at 25°C (77°F) battery life depending upon environmental conditions. All specifications are depending on activated functionality | |
| Manufacturer | Leica |
|---|---|
| Laser Beam Color | Red |
| Max Rotating Speed | 1200 rpm |
| Laser Orientation | Horizontal & Vertical |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft + |
| Grade Capability | ±15% |
| Grade / Slope | Dual |
| Grade / Slope Mode | Automatic |
