Nikon AC-2S Automatic Level with Circle
- 2.46-foot minimum focusing distance
- 1/8 inch accuracy
- 0.5 arc-second compensator accuracy
- 360-degree horizontal circle
- Detachable eyepiece
- IP52 dust and water resistant
- 5/8-11 tripod thread
- 1-year warranty

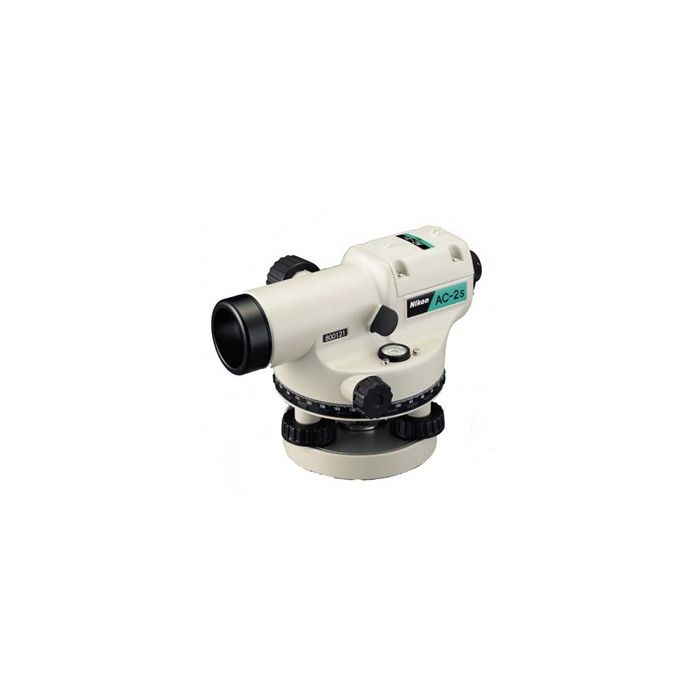

The Nikon AC-2S Automatic Level is used to take highly accurate horizontal plane and angle. With 24x magnification, this survey and construction tool is equipped with powerful optics that absorbs more light for brighter and sharper images. It has an accuracy of 1/8 inch at 150 feet and features an internal compensator to level the line of sight, making it perfect for landscaping, pipe laying, installing foundation and more.
World Class Optics
With a minimum focusing distance of 2.46 feet, the AC-2S allows for better performance in tight spots or on steep slopes. This auto level also has a built-in magnetic dampened compensator that levels the line of site within the range of ±16 arc-minutes and an accuracy of 0.5 arc-second. Its detachable eyepiece lets you use a diagonal eyepiece prism (not included) for working in extremely confined spaces.
Easy to Setup and Use
Featuring a large focusing knob and horizontal tangent knobs with unlimited range, surveyors and construction professionals can operate the Nikon AC-2S with either hand to ensure smooth precise pointing and angular measurement. Its horizontal circle is clearly marked 360 degrees and it can be attached to both flat and spherical-head tripods.
With its rugged and water-resistant construction, you can use the AC-2S auto level in light rain or dusty conditions. It is also compact and lightweight for easy transport.
This Nikon automatic level comes with a hard carrying case, objective lens cap, adjustment tool, vinyl dust cover and 1-year manufacturer's warranty.
|Weight||2.9 lbs (1.3 kg)|
|Protection Class||IP52 (protected against dust and rainfall)|
|Units of Measure||Degrees|
|Time||2.46 ft. (0.75 m)|
|Leveling||1/8 in. at 150 ft. (3.0 mm at 46 m)|
|Field of View||2.6 ft. at 100 ft. (1° 30')|
|Diameter of Objective||1.2 in. (30 mm)|
|Bubble Vial||10' / 2mm|
|Type||Wire-hung, magnetic damper|
