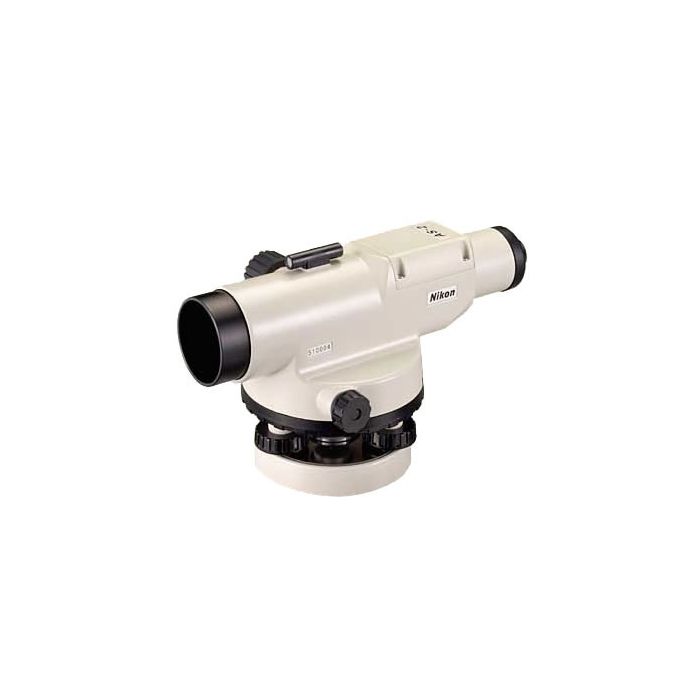

Nikon AE-7 / AE-7C Automatic Level
Precise measurements from waterproof, high-power telescopes
Nikon AE-7 and AE-7C automatic levels are designed for a variety of elevation control and alignment tasks including general building construction, cut and fill measurements, area leveling, and landscaping.
Features
- Compact and lightweight
- Waterproof construction
- Automatic air-dampened compensator
- Standard optical sight lens
- Powerful telescopes with improved minimum focusing
- Carrying case, adjusting pins and lens cap included
Nikon AS/AE Series auto levels feature waterproof, nitrogen-filled, high-power telescopes that help you make precise measurements even in the wettest conditions. They feature a unique automatic air-dampened compensator to prevent magnetic interference, and an endless horizontal fine drive to ensure smooth, precise pointing and angular measurement. AS/AE Series auto levels are easy to set up and easy to use. All four models can attach to both flat- and spherical-head tripods, and the standard optical sight lens helps you find your target quickly, easily and accurately. A mirror with a pentaprism lets you view the circular bubble as an erect image during setup and sighting.
| TELESCOPE | |
| Tube length | 8.7 in (220 mm) |
| Image | erect |
| Effective aperture of objective | 1.57 in (40 mm) |
| Magnification | 30x |
| Resolution power | 3" |
| Field of view | 1°30' (2.6 ft @ 100 ft) |
| Minimum focusing distance | 0.98 ft (0.3 m) |
| Stadia ratio | 1:100 |
| Stadia additive constant | 0 |
| LEVEL VIAL SENSITIVITY | |
| Circular level | 10'/2 mm |
| STANDARD DEVIATION in 1-km double-run leveling | |
| Without micrometer | ±1.0 mm |
| With micrometer | ±0.45 mm |
| AUTOMATIC COMPENSATOR | |
| Type | wire-hung, air damper |
| Compensation range | ±16' |
| Setting accuracy | ±0.35" |
| HORIZONTAL CIRCLE (AE-7C only) | |
| Diameter of circle | 4.6 in (118 mm) |
| Minimum increment | 1°/1 g |
| Scale reading (direct) | 1°/1 g |
| Reading by estimation | 0.1°/0.1 g |
| DIMENSIONS | |
| Instrument (L x W x H) | 8.7 x 5.4 x 5.6 in (220 x 136 x 142 mm) |
| Carrying case (L x W x H) | 14.9 x 7.7 x 7.8 in (379 x 195 x 197 mm) |
| WEIGHT | |
| Instrument | 3.7 lb (1.7 kg) |
| Carrying case | AE-7: 4.0 lb (1.8 kg) AE-7C: 4.2 lb (1.9 kg) |
| Manufacturer | Nikon |
|---|---|
| Accuracy | 1/16" At 100ft |
| Magnification | 30X |
