NRL802K
Northwest Instrument Two - Beam General Purpose Laser with Slope Match Function + Detector - NRL802K
In stock
Northwest Instrument Two - Beam General Purpose Laser with Slope Match Function + Detector - NRL802K
The NRL802 is equipped with high-performance tilt sensors and servo motors that provide accurate leveling in both horizontal and vertical directions. For indoor and outdoor leveling applications, just set up the instrument within a wide range of +/- 4(degree sign) and the servo motors will find level automatically. Great indoor features include wide sweep, narrow sweep (chalk line generating) and dual beam squaring for both level and plummet.
Features:
- Grade and Slope Mode (manual)
- State-Of-The-Art Electronic Servo Auto Level System
- Rotation Speed of 600 RPM
- Multiple Scan Mode of 10°, 20° and dot
- Self-Leveling in Both Horizontal & Vertical Positions
- Bump Sensor Prevents Costly Mistakes
- Dust and Water Resistant

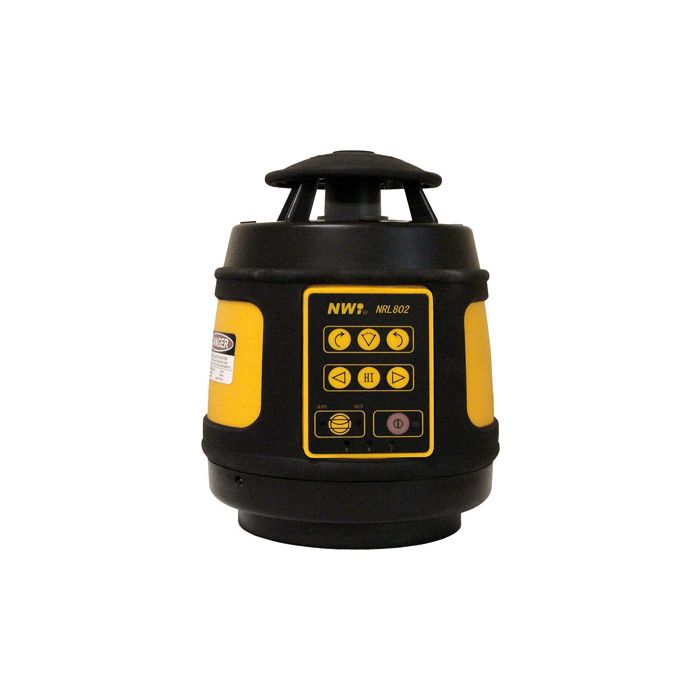

- NRL802 Rotating Laser Unit
- NRB800 Ni-Cad Rechargeable Batteries and Charger
- Remote Control
- Hard Carrying Case
- Manual
- Self-Leveling: Horizontal and Vertical (Vertical when laid on its side)
- Laser Beams: Horizontal and Plummet
- Wave Length: 635 nm
- Safety Class: Class II/IIIa
- Operating Range: 1000 feet Radius with NLD5G Detector (Detector Sold Separately).
- Leveling Accuracy: 1/16" @ 100 ft
- Self-Leveling Range: +/- 4 Degrees
- Self-Leveling Method: Electronic Servo Motors
- Bump Sensor: On board
- Out-of-range Alarm: Beep and blinking
- Power: NRB800 Ni-Cad Rechargeable Batteries (Battery and Charger included).
- Operating Temperature: -10 to +40C
- Tripod Adapter: 5/8 x 11
| Manufacturer | Northwest |
|---|---|
| Includes |
|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal & Vertical |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft + |
| Grade Capability | ±4% |
| Grade / Slope | Single |
| Grade / Slope Mode | Slope Match |
