NIN/EXPK802

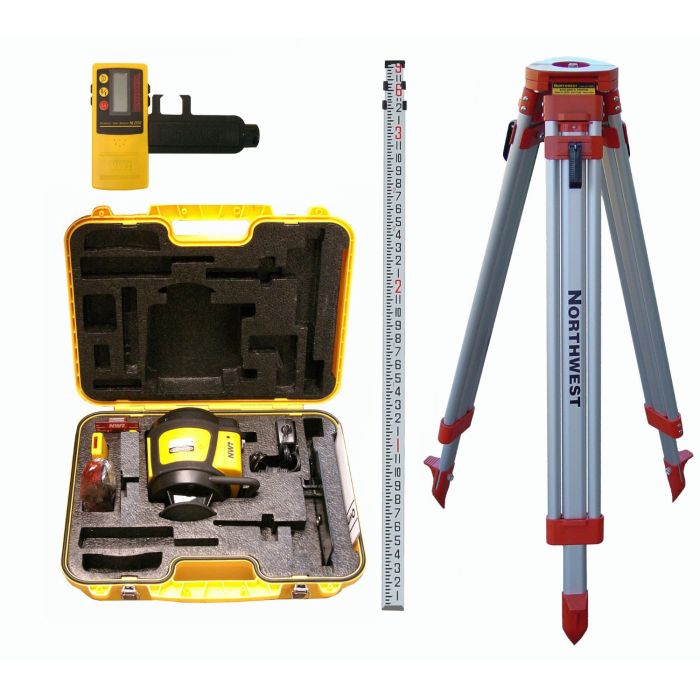

Northwest Instrument Two - Beam General Purpose Laser with Slope Match Function Interior /Exterior Pkg. - NIN/EXPK802
In stock
$1,080.00
Northwest Instrument Two - Beam General Purpose Laser with Slope Match Function Interior /Exterior Pkg. - NIN/EXPK802
- State-Of-The-Art Electronic Servo Auto Level System
- Multiple Rotating Speed from 0-500 rpm
- Multiple Scan Mode of 10°, 20° and dot
- Self-Leveling in Both Horizontal & Vertical Positions
- Bump Sensor Prevents Costly Mistakes
- Dust and Water Resistant
The NRL802 is equipped with high-performance tilt sensors and servo motors that provide accurate leveling in both horizontal and vertical directions. For indoor and outdoor leveling applications, just set up the instrument within a wide range of +/- 4(degree sign) and the servo motors will find level automatically. Great indoor features include wide sweep, narrow sweep (chalk line generating) and dual beam squaring (standard) for both level and plummet.
| Laser Beams | Horizontal and Plummet |
| Wave Length | 635 nm |
| Safety Class | Class II/IIIa |
| Operating Range | 500 ft with Detector |
| Leveling Accuracy | 1/8 in @100 ft |
| Self-Leveling Range | 4° |
| Self-Leveling Method | Electronic Servo Motors |
| Bump Sensor | On Board |
| Out-Of-Range Alarm | Beep and Blinking |
| Power | 4 C Alkaline Batteries (included)or Rechargeable Battery (optional) |
| Operating Temperature | -10°-+40° C |
| Tripod Adapter | 5/8x11 in. |
| Approx. Weight with Case | 5.5 lb. |
| Detector (NLD2K) | |
|---|---|
| Detecting Range | 500 ft |
| Resolution (fine)Resolution (coarse) | +/- 0.4"+/-.10" |
| Auto Power Off | 10 minutes |
| Power | DV9V (included) |
| Approx. Weight | 0.6 lb. |
| Manufacturer | Northwest |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal & Vertical |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft + |
| Grade Capability | ±4% |
| Grade / Slope | Single |
| Grade / Slope Mode | Slope Match |
