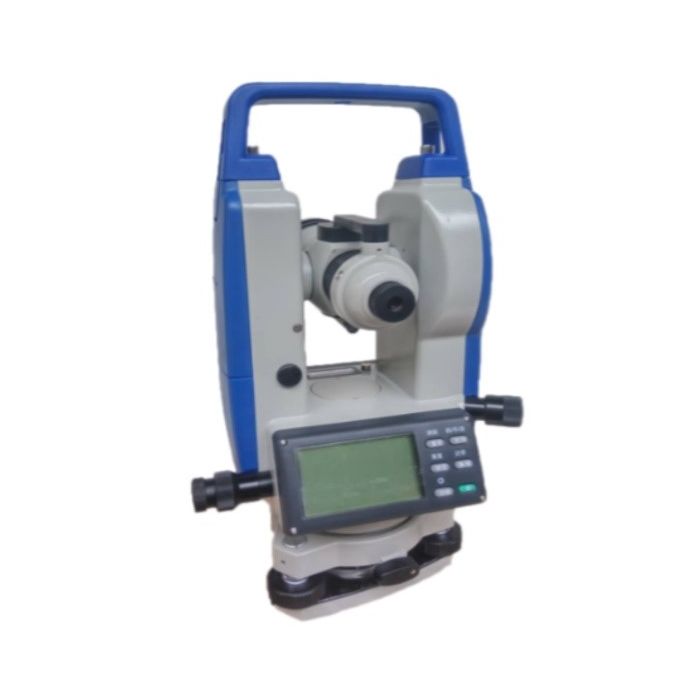

SIS DT02 2" Electronic Theodolite
The DT02 model is a 2” accuracy dual display electronic theodolite.
The DT02 model is a 2” accuracy electronic theodolite. The unit has dual displays, and a detachable tribrach. Horizontal and vertical angles can be observed simultaneously on the large LCD displays. Other standard features include a horizontal angle zero set, automatic power off to conserve batteries, and a battery Iife indicator on the LCD display.
|
DT-02 |
DT-02L |
|
|
TELESCOPE |
||
|
Image |
Erect |
|
|
Magnification |
30X |
|
|
Effective aperture |
45mm |
|
|
Resolving power |
3.5" |
|
|
Field of view |
1°30' |
|
|
Minimum focusing distance |
1.3m |
|
|
ANGLE MEASUREMENT |
||
|
measurement method |
Absolute encoding |
|
|
Minimum reading |
1"/5"selectable |
|
|
Accuracy |
2" |
|
|
Detection method: hor. |
Dual |
|
|
DISPLAY |
||
|
(LCD) display type |
2 sides, LCD |
|
|
Collimation laser |
||
|
Max Range |
200m |
|
|
SENSITIVITY OF VIAL |
||
|
Plate vial |
30"/2mm |
|
|
Circular vial |
8'/2mm |
|
|
COMPENSATION |
||
|
System |
Liquid-electric detection |
|
|
Working range |
±3' |
|
|
Laser Plummet |
||
|
Dot Diameter |
2mm |
|
|
Accuracy |
1.0mm |
|
|
Operating temperature |
-20°C ~ 45°C |
|
|
Communication standard |
RS232C |
|
|
Battery |
Chargeable battery or four AA alkaline |
|
|
Operating time |
45 hours |
|
|
Weight |
4.8kg |
|
| Manufacturer | Survey Instrument Sales |
|---|---|
| Angle Accuracy | 2 Seconds |
| Plummet | Optical, Laser |
| Magnification | 30X |
