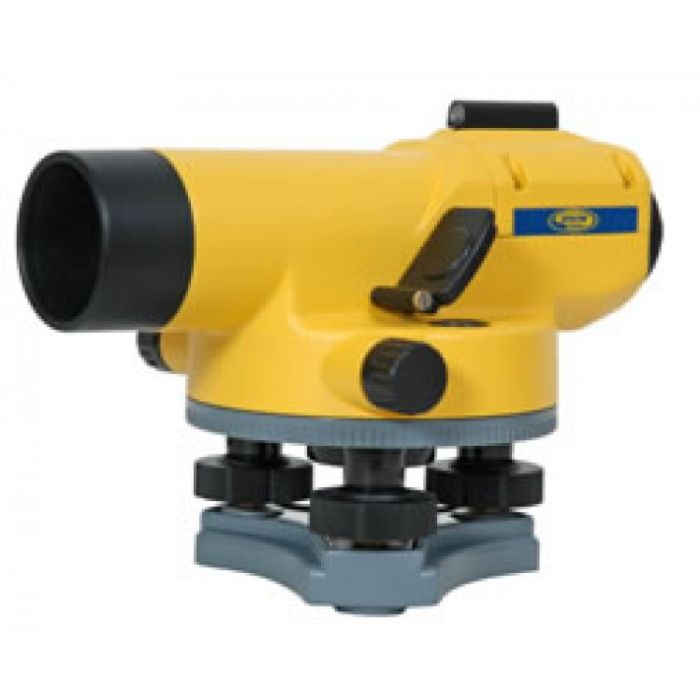

Spectra Precision AL Series AL32A Automatic Level 32X Automatic Level, Air Damped
Spectra Precision's auto level features 32X magnification and air-dampened compensators.
Spectra Precision's auto level features 32X magnification and air-dampened compensators.
The removable top cover makes access to the compensator easy.
It comes with an endless tangent drive, tilting mirror for easy viewing of the leveling vial and a peep sight collimator for quick pointing.
Accurate to 1/16-inch per 100 feet (in good weather conditions).
Includes a high-quality, impact resistant padded carrying case.
The kit also includes the auto level, Allen wrench, pin tool, rain cover, and plumb bob.
Specifications
Magnification |
32x |
Color |
Yellow |
Objective Diameter |
36 mm |
Field of View Angle |
1° 20' |
Shortest Focusing Distance |
0.6 m |
Stadia Constant |
100 |
Additive Constant |
0 |
Compensator Dampening |
Air |
Compensator Range |
±15' |
Compensator Setting Accuracy |
<0.3" |
Double Run Leveling per 1 km |
1 mm |
Circular Vial Accuracy |
8/2 mm |
Horizontal Circle |
1° |
Weight |
3.5 lb (1.6 kg) |
Base Plate |
5/8 x 11 |
| Magnification | 32 X |
| Color | Yellow |
| Objective Diameter | 36 mm |
| Field of View Angle | 1º 20' |
| Shorest Focusing Distance | 0.6 m |
| Stadia Constant | 100 |
| Additive Costant | 0 |
| Compensator Dampening | Air |
| Compensator Range | ±15' |
| Compensator Setting Accuracy | <0.3" |
| Double Run Leveling per 1 km | 1 mm |
| Circular Vial Accuracy | 8/2 mm |
| Horizontal Circle | 1º |
| Weight | 3.50 lb (1.60 kg) |
| Base Plate | 5/8 x 11 |
| Manufacturer | Spectra Precision |
|---|---|
| Accuracy | 1/16" At 100ft |
| Magnification | 32X |
-
