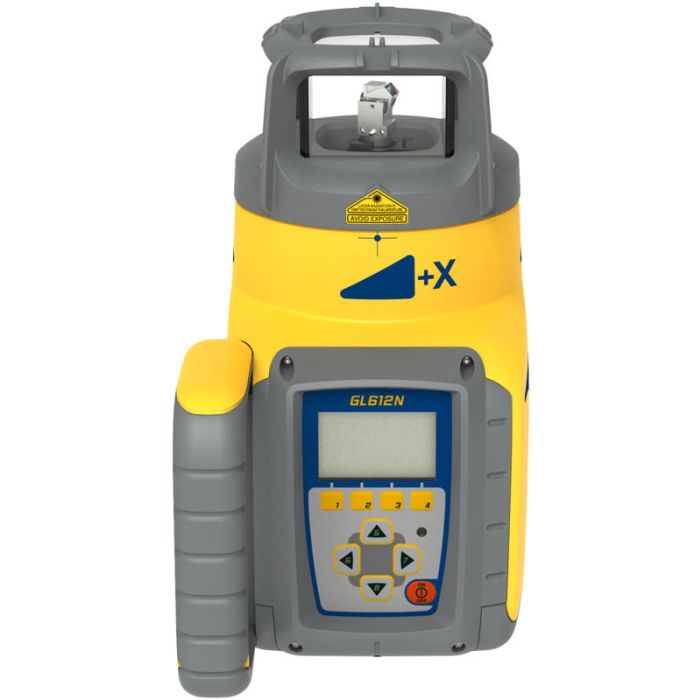

Spectra Precision GL612N Self Leveling Horizontal Vertical Grade Laser
Spectra Precision® Laser GL122 Grade Laser
Easy-To-Use, Full Featured Automatic Grade Laser
GL612 - OVERVIEW
Spectra Precision® Laser GL612 Grade Laser—
Easy-To-Use, Full Featured Automatic Grade Lasers, The GL612 is a single grade laser. It's a rugged, automatic self-leveling lasers featuring grade capability of ± 25% and can be used in a wide variety of grading, excavating and alignment applications by general and specialty contractors. The GL612 includes the RC602 full-function radio remote control which offers advanced automatic features like Grade Match, PlaneLok and Automatic Axis Alignment. The remote as well as the transmitters have an intuitive graphic display which is back-lit for ease of viewing. Contractors can do everything with the remote control that they can do at the laser keypad, up to 100 meters (330 feet) away—even from the cab of a machine. The ability to make grade changes remotely can significantly reduce setup time and speed operations. Each laser package also includes the advanced HL750 Laserometer that provides a digital readout of elevation and can be used at an operating diameter of up to 800 meters (2,600 feet). Wireless communication between the HL750 Laserometer and the transmitters provide automatic Grade Matching which allows measurement of unknown grade values between two points. For applications that require maximum stability and accuracy, PlaneLok is available in both the horizontal and vertical planes. PlaneLok automatically locks the beam on the receiver and keeps it on grade. This reduces typical environmental factors that may induce an error. In addition, the HL750 Laserometer can communicate with another HL750 for long-range wireless remote display and monitoring. The GL612 and GL622 Grade Lasers self-plumb in the vertical position to allow an even wider range of applications such as such as anchor bolt installation, form, tilt up, and curtain wall plumbing. With its rugged design, the GL612 Grade Laser can survive a drop of up to 1 meter (3 feet) on concrete. The laser also features IP67 moisture and dust sealing to handle the tough construction environment. The GL612 Grade Laser retains all well accept functions of the GL500 series lasers with additional advanced features and benefits offering much more versatilities.
GL612 - FEATURES & BENEFITS
- Automatic electronic self-leveling provides fast, easy horizontal level, grade, and vertical plumb setup
- Large compensated grade range from -25% to +25%
- Quick setups with the radio remote control for horizontal, vertical and grade applications
- Electronic Leveling Vibration Filter dampens vibrations typically experienced on tall tripods, in high winds, or on high vibration jobsites
- No rework due to automatic temperature and grade- and cross axis compensation
- Automatic Axis Alignment doing precise automatic axes alignments to a desired alignment points without positioning the receivers 90° perpendicular
- (+/-40° alignment range on Y- and X-axis)
- Automatic Grade Match (Y- or X-axis separate) measures and displays the existing grade over unknown ground and eliminates time consuming and error prone calculations, time spent searching for grade plans, and over excavating (X- only GL622)
- Automatic PlaneLok (Y- or X-axis) automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather (X- only GL622)
- Very rugged, survives a 1 m (3 ft) drop on concrete—reduces service and repair costs
- Mask mode eliminates interference with other crews on the jobsite
- Different rotation speeds (continuously adjustable) plus Scanning Mode offer additional value and make sure also requirements of Interior jobsite will be fulfilled (only GL622)
GL612 - APPLICATION
- General construction leveling such as forms, footers and pads
- Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok)
- Drift free general construction vertical alignment and plumb for anchor bolt installation, plus form, tilt up and curtain wall plumbing (Automatic PlaneLok)
- General construction grading and excavating
- Steep slope road embankments and ditch banks
- Sports fields, driveways, ramps and drainage
Laser
|
|
Color | Red |
Wavelength | 650 nm |
Classification | Class 2 |
Visibility | Visible |
Range
|
|
Exterior | 2,600 ft (792 m) |
Self Leveling | ± 14° |
Battery/Power
|
|
Battery Life with Rechargeable Battery Pack | 35 hours |
Battery Life with Alkaline Batteries | 40 hours |
Power Source | Rechargeable NiMH or alkaline batteries |
Battery Life Alert | yes |
Features
|
|
Automatic Shut-Off | yes |
Display | Backlit, graphic LCD |
Drop Damage Protection | 3 ft onto concrete |
Protection Class | IP67 (dustproof and water submersible) |
Tripod Adapter (Center Screw Thread) | 5/8-11 horizontal and vertical |
Detecting Indicator | LCD indications and LED flashes |
Adjustable Rotating Speed | 300, 600, 900 rpm |
General
|
|
Weight | 6.8 lbs (3.1 kg) |
Warranty | 5-year |
Remote Control Operating Distance | 330 ft (100 m) |
Extra Technology
|
|
Remote Control | RC602 |
Detector/Reciever | HL750/CR600 |
Accuracy
|
|
Horizontal | 1/16” per 100 ft (1.5 mm per 30 m) |
Temperature
|
|
Storage | -4°F to +158°F (-20° to +70°C) |
Operating | -4°F to +122°F (-20 °C to +50 °C) |
Functions
|
|
Slope Match | yes |
Grade Operation | Automatic |
Automatic Leveling | yes |
Beam Operating Modes | Beam masking |
Applications
|
|
Checking/Setting Elevations | yes |
Transferring Points from Floor to Ceiling | yes |
Machine Control of Excavators, Graders, Dozers or Similar Equipment | yes |
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) | yes |
Short-Range Leveling for Decks, Patios & Swimming Pools | yes |
Installation/Leveling Interior Walls | yes |
Installation/Leveling Ceiling Grids | yes |
Squaring and Layout of Partitions, Walls & Tile Floors | yes |
Concrete Forms, Footings and Foundations | yes |
Plumb Reference | yes |
Checking Elevations of Sub-Base and Sub-Grade | yes |
Short-Run Vertical Alignment | yes |
Checking Building Square & Area | yes |
Estimating Cut & Fill | yes |
Matching Existing Slope & Grade | yes |
Locating Finished Floor Levels | yes |
Grade
|
|
Type | Single |
Percentage | ± 25% |
Accuracy | 1/8” per 100 ft. (3.0 mm per 30 m) |
The Rubik's Cube is a 3D twisty puzzle. Read the beginner's solution tutorial.
Manufacturer | Spectra Precision |
---|---|
Max Rotating Speed | 900 rpm |
Laser Orientation | Horizontal & Vertical |
Accuracy | 1/16" At 100ft |
Leveling | Self Leveling |
Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft +, 2,500 ft + |
Grade Capability | ±25% |
Grade / Slope | Single |
Grade / Slope Mode | Automatic |
