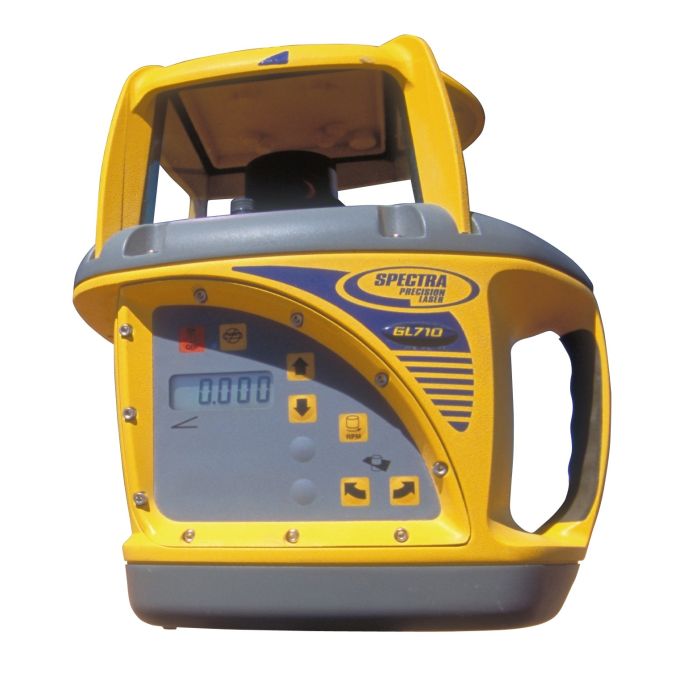

Spectra Precision GL710 Self Leveling Single Grade Laser
An easy-to-learn, easy-to-use one-person grade laser, economical and accurate up to a 900 m (3,000 ft) diameter. Ideal for general construction, site preparation, trenching and pipe laying applications.
Built for Grade Professionals, the Spectra Precision GL700 Series of grade lasers are the most advanced grade lasers on the market. Delivering industry leading performance and accuracy, you can be sure that if you need to work with grade over long distances and require high accuracy the GL700 series will deliver.
Easy to use, one-man operation, GL710 is a single grade laser accurate up to 900m (3,000 feet) diameter. With a -0.5% to +25% grade, the GL710 is a great choice for general construction, site prep, trenching and pipe-laying applications. Each unit comes with a laser receiver as standard, your choice of power options and the best service and support in the industry. Fast set-up, high accuracy and long range equals more productivity.
Features:
- Easy-to-learn, easy-to-use one-person grade laser
- Accurate up to 900 m (3,000 ft) diameter
- Ideal for
- general construction
- site preparation
- trenching
- pipe-laying applications
| Grade Range Accuracy | ||
| Axis Grade Range X | -10 to +10% | |
| Self-Leveling | Self Levels to 10% | |
| Grade Resolution | 0.001% | |
| Servo Deadband Accuracy | 4.6 arc seconds | |
| Laser Classification | ||
| CDRH II (IECI) | ||
| Range/Radius | ||
| Laser | 450 m (1500 ft) with Spectra Precision Lasers machine-mounted receivers | |
| Mounting Threads | ||
| 5/8” x 11” | ||
| Waterproof & Housing | ||
| Waterproof Aluminum Housing | ||
| Dimensions | ||
| Weight | 8.5 kg (18.8 lbs) | |
| Size | Height | 29.8 cm (11.75 in) |
| Width | 25.4 cm (10.0 in) | |
| Depth | 19.7 cm (7.75 in) | |
| Manufacturer | Spectra Precision |
|---|---|
| Max Rotating Speed | 900 rpm |
| Laser Orientation | Horizontal Only |
| Accuracy | 1/32" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft + |
| Grade Capability | ±25% |
| Grade / Slope | Single |
| Grade / Slope Mode | Automatic |
