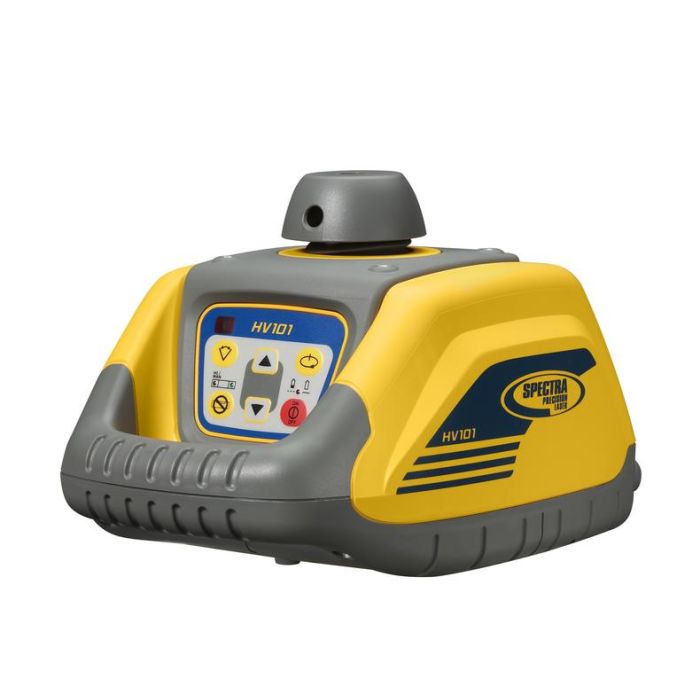

Spectra Precision Laser HV101 Self Leveling Horizontal and Vertical Laser Level
In stock
The automatic, self-leveling Spectra Precision Laser HV101 Laser is a professional tool with an economical price tag.
The automatic, self-leveling Spectra Precision Laser HV101 Laser is a professional tool with an economical price tag. The HV101 laser is capable of handling a wide variety of horizontal, vertical and plumb applications. It is rugged enough for the toughest jobsite and designed to survive a 3 foot (1 m) drop onto concrete. The HV101 is backed by the industry's only 3-year instant over the counter exchange warranty.
HV101 Features & Benefits
- Automatic self-leveling increases productivity with fast setups and minimal training
- Beam is easily visible even in brightly lit conditions
- Durable construction can withstand tough jobsite conditions
- Split beam enables plumb point transfer and 90-degree layout
- Remote control offers scanning, speed control, slope setting, and alignment control for fast one person setups
- 3-year instant over the counter exchange warranty eliminates downtime
Applications
- Acoustical ceiling installation
- Drywall installation
- Interior squaring/layout/vertical alignment
- Interior finishing work
- Outdoor short range general construction leveling and aligning
- Outdoor elevation transfer work such as septic tank installation
- Residential construction
- Small commercial construction
Specification | Description |
Laser Source | <5 mW @ 635 nm, Class 3A |
Laser Accuracy | ± 1/8 in @ 100 ft (± 3 mm @ 30 m) |
Operating Range | 200 ft (60 m) visual, diameter 1,000 ft (300 m) with receiver, diameter |
Power Source | 2 x D-cell Alkaline batteries |
Battery Life | 50 hrs 45/25 hrs user provided Ni-MH/Ni-CD |
Rotation Speed | 0, 50, 200, 600 RPM |
Scan Angles | 3°, 8°, 45°, 90°, 180° |
Warranty | 3-Year limited with instant exchange |
Water Resistant | Yes, IP54 sealing |
Size | 8.5L × 6.7W × 6.0H in (21.6L × 17.1W × 15.2H cm) |
Weight | 3.3 lbs (1.5 kg) |
Manufacturer | Spectra Precision |
---|---|
Max Rotating Speed | 600 rpm |
Laser Orientation | Horizontal & Vertical |
Laser Range | 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft + |
Leveling | Self Leveling |
Accuracy | 1/8" At 100ft |
