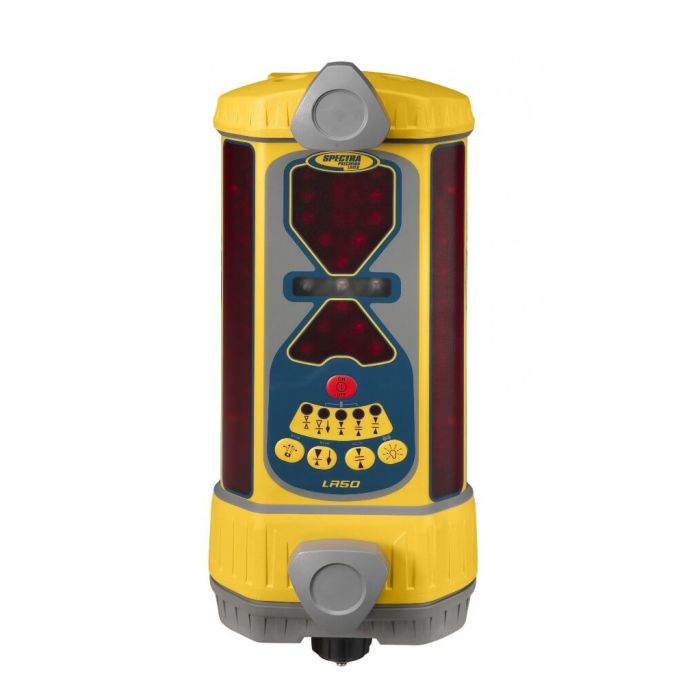

Spectra Precision LR50 / LR50W Laser Machine Display Receiver
In stock
$1,925.00
Rugged 360-degree Laser Display Receiver with Built-in Blade Tilt and Excavator Boom Plumb Indicator
Rugged 360-degree Laser Display Receiver with Built-in Blade Tilt and Excavator Boom Plumb Indicator
The Spectra Precision® Laser LR50 Laser Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including: dozers, excavators, backhoes, scrapers, and box blades. The easy-to-use LR50 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR50 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics.
Features
- Built-in blade tilt indicator helps the operators keep the blade level for increased accuracy and productivity.
- Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades.
- Offset on-grade for productive excavation provides additional above grade information for less undercuts.
- Built-in plumb indicator for fast, accurate grade checking for excavators and backhoe's.
- Up to six channels of grade information plus directional out-of-laser beam indicators.
- Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility.
- Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions.
- Use as standalone display receiver or with CB25 Single Control Box for an affordable blade control solution.
- Used with Spectra Precision Laser RD10 Remote Display.
Used on:
- Dozers
- Graders
- Scrapers
- Skid Steers
- Box Blades
- Levelers
- Kilvers
General
|
|
Type of Attachment | Magnetic (optional) |
Dimensions | 13.50 in x 5.58 in x 5.88 in |
Weight | 5.5 lbs |
Housing | Aluminum-cast |
Warranty | 2-year |
Accuracy
|
|
Fine | 5 mm |
Medium | 10 mm |
Coarse | 20 mm |
Battery/Power
|
|
Battery Life | 60 hours alkaline; 45 hours NiMH |
Low Battery Indicator | yes |
Power Source | Alkaline C Cell or Rechargeable NiMH |
Charging Time | 3 to 4 hours |
Temperature
|
|
Operating | -4°F~140°F (-20°C~60°C) |
Features
|
|
Automatic Shutoff | After 75 minutes |
Reception Angle | 360° |
Plumb Indicator | ± 0.5°, ± 1.5°, ± 2.5° |
LED Indicators | On-grade, Above, Below |
Laser Detection Height | 6.75-inch |
Channels | 6 |
Manufacturer | Spectra Precision |
---|
