Spectra Precision LT56 360 Degree Line Laser Level
- 80-foot interior range
- 200-foot exterior range with optional laser detector
- 360-degree coverage
- 6 intersecting beam points and 3 laser lines
- Self-leveling within 4 degrees and ±1 degree in all direction
- ±1/4-inch accuracy at 100 feet
- Ceiling and magnetic mount
- 45-hour battery life
- IP54 dust and water-resistant
- 1/4-20 or 5/8-11 tripod thread

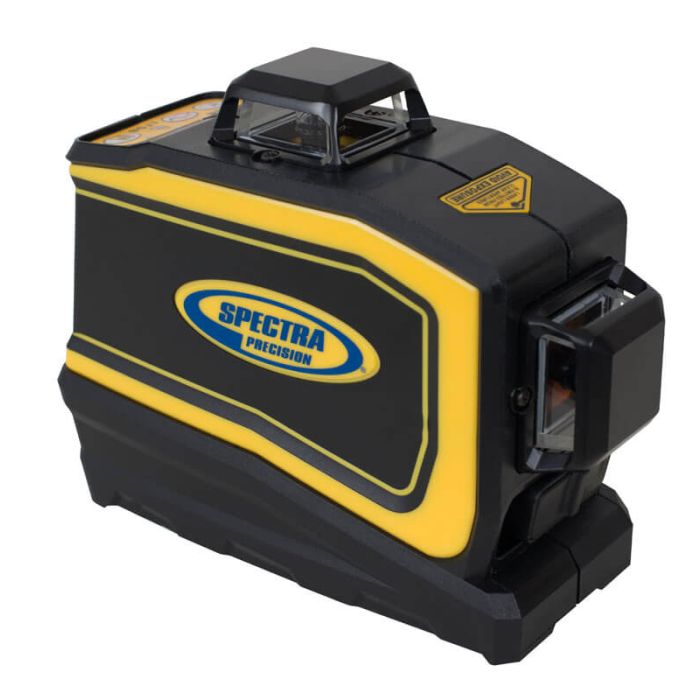

The Spectra LT56 is a complete layout tool, an automatic, self-leveling line laser that projects a whopping three 360-degree planes of ultra-bright laser beams. With a working range of up to 80 feet, this construction laser features a horizontal plane and two vertical planes at 90-degrees from each other that provide all the reference required for interior layout. It also comes with a versatile mounting accessory that includes a ceiling track, magnetic and tripod mounts with rotation and fine vertical adjustment.
Accurate and Self Leveling
Ideal for a wide variety of interior applications, such as wall and tile layout, acoustic ceiling installation, cabinet and chair rail installation, point transfer and more, the LT56 line laser is self-leveling within 4 degrees and ±1 degree in all direction. When all 3 360 degree laser lines are on, the 6 intersections create a 6-beam point laser! It also has ±1/4-inch accuracy at 100 feet and dual tripod threads for added versatility.
Universal Mount
The included universal mount enables you to attach this Spectra line laser to a ceiling grid, various sized tripods, columns and studs. The mount also has fine vertical height and horizontal rotation adjustments for quick and easy setups. You also have the option for an HR220 laser receiver for elevation control and extended working range up to 200 feet outdoors.
Robust Construction
With an IP54 rating and an overmold housing, the LT56 is protected against dust and water splashes and can withstand a drop of up to three feet high. It is also powered by rechargeable Li-Ion batteries that provide a battery life of approximately 25 to 45 hours, depending on the number of laser planes used.
This Spectra line laser level package comes with a universal mount, target plate, laser glasses, rechargeable battery, battery charger and 3-year manufacturer's warranty.
Features
- 80-foot interior range
- 200-foot exterior range with optional laser detector
- 360-degree coverage
- 6 intersecting beam points and 3 laser lines
- Self-leveling within 4 degrees and ±1 degree in all direction
- ±1/4-inch accuracy at 100 feet
- Ceiling and magnetic mount
- 45-hour battery life
- IP54 dust and water-resistant
- 1/4-20 or 5/8-11 tripod thread
|
General
|
|
| Warranty | 3-year |
| Weight | 1.48 lbs (0.67 kg) |
| Laser Type | 635nm |
| Dimensions | 4.6 x 6.0 x 3.3 in (152 x 116 x 84 mm) |
| Laser Class | 2 |
|
Measuring Capabilities
|
|
| Leveling Accuracy | ± 1/4 in. at 100 ft (5 mm at 30 m) |
| Working Range | up to 80 ft (25 m) |
| Vertical Accuracy | ± 1/4 in. at 100 ft (5 mm at 30 m) |
| Self-Leveling Range | 4 degrees; ±1 degree all direction |
| Range with Receiver | up to 200 ft (65 m) |
| Number of Points | 6 |
| Number of Lines (Planes) | 3 |
| Beam Direction | up, down, forward, right, left |
| Horizontal Accuracy | ± 1/4 in. at 100 ft (5 mm at 30 m) |
| Plumb Accuracy | ± 1/4 in. at 100 ft (5 mm at 30 m) |
|
Battery/Power
|
|
| Operating Temperature | 14 °F to 113 °F (-10°C to 45°C) |
| Storage Temperature | -4 °F to 140 °F (-20°C to 60°C) |
| Operating Time | 45 hours |
| Power Source | Rechargeable Lithium-ion, 7200 mAh, 3.7 V |
| Battery Level Indicator | yes |
|
Applications
|
|
| Transferring Points from Floor to Ceiling | yes |
| Installing Windows and Partition Walls | yes |
| Transferring Points from Wall to Wall | yes |
| Installing Drop Ceilings and Lights | yes |
| Flooring and Tile Layout | yes |
| Ceiling Joist and Rafter Alignment | yes |
| Diagonals and Footings for Patios | yes |
| Stud Plumbing and Alignment | yes |
| Installing Plumbing Pipes and Conduit | yes |
|
Functions
|
|
| Plumbing Up and Down | yes |
| Setting out Right Angles | yes |
| Horizontal Leveling | yes |
| Vertical Aligning | yes |
| Vertical and Horizontal Aligning | yes |
| Aligning at an Angle | yes |
|
Features
|
|
| Tripod Thread | 1/4-20 and 5/8-11 |
| Environmental Class | IP54 (dust and water splash protected) |
| Self-Leveling | yes |
| Manufacturer | Spectra Precision |
|---|---|
| Range | 25 ft +, 50 ft +, 75 ft +, 100 ft +, 200 ft + |
| Number of Lines | 360° + 2 Lines |
