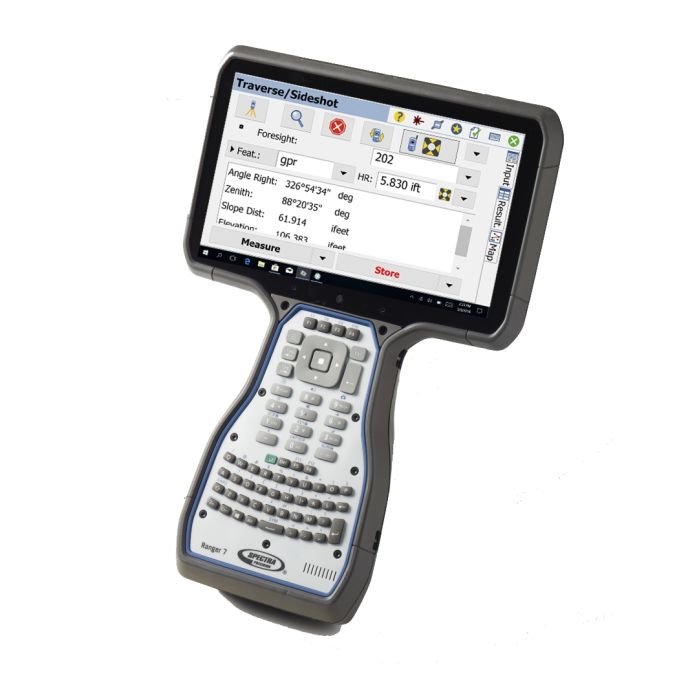

Spectra Geospatial Ranger 7 Windows 10 Data Collector
The Ranger 7 Data Collector, with its rugged and sunlight readable 7-inch touch screen, full keypad, and Windows 10 Pro operating system, is built to hit mark for surveyors requiring an easy-to-use, rugged, cost-effective data collector. The Ranger 7 comes with either Survey Pro or Layout Pro depending on your needs. With the full-features Windows 10 operating system, the Ranger 7 can also handle many other apps that will help make you more productive.
Welcome to the fourth generation Ranger data collector. Its all-new design is based on the experience gained over the last 18 years of demanding field operations. The guiding principles have never changed: productivity, reliability, and quality. A down day is simply not an option.
The Ranger 7 continues the legacy of the Ranger data collector by focusing on what is important.
- Screen Size: It’s not just about showing a bigger map; it’s about seeing results and making decisions.
Full Keyboard: It’s about getting that data input quickly and error free. The backlit QWERTY keyboard and full numeric keypad are designed for just that. - Rugged and Reliable: A down day really isn’t an option. Few things are more damaging to schedules and profits than equipment that isn’t ready. The Ranger 7 is designed tough. It is up to your challenge.
- Enables Productivity: The screen, keyboard, toughness, solid pole bracket, hot-swappable batteries, and industry leading field software like Survey Pro, all combined with high quality Spectra Precision instruments means you get the most out of your money.
Ready For You
- 7" multi-touch display
- Easier to see your data and operate
- Dual hot-swap batteries
- Continuous power
- Windows 10 Professional operating system
- OS for professionals
- Available with Survey Pro and Layout Pro software
- The right software for the job
|
General
|
|
| Weight | 3.12 lbs (1.42 kg) |
| Warranty | 1-year |
| Protection Class | IP68 dustproof and water immersible |
| Casing | Glass-fiber reinforced resin |
| Dimensions | 11.8 in x 8.2 in x 2.8 in (30 x 20.9 x 7.1 cm) |
|
Display/Keypad
|
|
| Type | 7" multi-point capacitive landscape LCD, sunlight readable |
| Keys | QWERTY or ABCD, numeric key block, function keys |
| Touchscreen | Yes |
| Backlight | Yes |
| Resolution | 1280 x 800 pixels |
| Size | 7 in |
|
Interface/Data
|
|
| Operating System | Windows 10 Professional |
| Processor | Intel Apollo Lake - N4200, 64-bit quad-core |
| Bluetooth | BT 2.1 + EDR, BT 4.1 |
| WI-FI | 802.11 a/b/g/n, 2.4 GHz radio band |
| WWAN | Worldwide LTE (RG7-002-001, RG7-S02-001) |
|
Software
|
|
| Type | Layout Pro Robotic (RG7-C22-001); Survey Pro Standard (RG7-S22-001, RG7-S02-001) |
|
Camera
|
|
| Resolution | 8-megapixel autofocus with flash (rear); 2-megapixel fixed-focus (front) |
|
Battery/Power
|
|
| Battery Life | Up to 5 hours (medium usage), 4-7 hours (depending on settings) |
| Power Source | 2 x 3100 mAh hot-swappable rechargeable |
|
Temperature
|
|
| Operating | –4 °F to 140 °F (–20 °C to 60 °C) |
| Storage | –40 °F to 158 °F (–40 °C to 70 °C) |
|
Storage
|
|
| RAM | 8 GB |
| Flash | 64 GB eMMC |
|
Card Slots/Ports
|
|
| USB | USB 3.1 Gen 1 |
| Audio | Speaker and dual digital microphone array with noise reduction |
| Serial | RS232 DB-9 |
| SD | MicroSDXC card up to 2 TB |
| SIM | MicroSIM card |
|
Features
|
|
| Geotagging | Yes |
| Internet/Email | Yes |
| Phone/Text | Yes |
| Electronic Compass | Yes |
| Accelerometer | Yes |
|
Software Programs
|
|
| MS Internet Explorer Mobile | Yes |
| MS Office Mobile | Yes |
| MS Windows Media Player | Yes |
| MS Pictures and Videos | Yes |
| SatViewer (GPS interface application) | Yes |
| Adobe Reader | Yes |
| MS Live Messenger | Yes |
| Calculator | Yes |
| MS Task Manager and Notes | Yes |
| Contacts | Yes |
| Manufacturer | Spectra Geospatial |
|---|---|
| Form Factor | Handheld with Full Keyboard |
