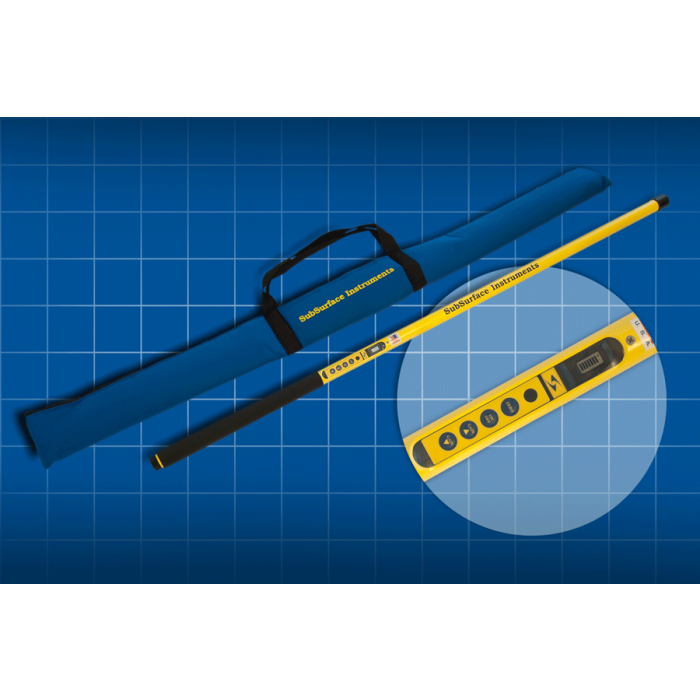

Subsurface Instruments Magnetic Locator — ML-3 Long (55") - ML-3L

Subsurface Instruments Magnetic Locator — ML-3 Long (55") - ML-3L

More Views

Subsurface Instruments Magnetic Locator — ML-3 Long (55") - ML-3L

Manufacturer Part Number(s): ML-3L

Email to a Friend

Be the first to review this product

SubSurface Authorized Dealer

Long magnetic locator offers durable one-handed operation that's 100% waterproof

Availability: In stock

$945.00

Optional Certification

NIST Traceable Cert +$75.00

$945.00

Qty:

Product Description
Additional Information
Reviews (0)

Product Description

The ML-3 is a much-anticipated and welcome addition to the ML family of magnetic locators from SSI. ML-3 magnetic locators represent the best in innovation at work for the water/sewer industry, surveying industry and military.

That's because the ML-3 reflects many of the items on our customers' technological wish lists. The ML-3 long is 55", making it the longest magnetic locator on the market. It allows you to make the biggest sweeps possible without compromising on accuracy. The ML-3 long provides ergonomic, lightweight, durable, one-handed operation option to traditional magnetic locators. It offers unparalleled durability, as all components are housed inside the aircraft-grade aluminum monotube units.

But don't let its looks fool you. It's 100 percent waterproof up to 220 feet - a first for the industry - so it can be used in difficult weather and submerged under water. Plus, its auto-zero feature allows the user to "cancel" ambient magnetics or magnetic gradient in the soil or water. And it's digitally tuned, so it offers unparalleled accuracy in detecting ferromagnetic objects.

Specifications
Overall Length:	55 in (139.7 cm)
Weight:	2.8 lbs (1.3 kg)
Input Power:	Three (3) standard 9-volt alkaline batteries
Battery Life:	≈ 60 Hours
Frequency:	16.5 kHz
Audio:	Speaker pitch increases in frequency proportional to gradient field intensity
Visual:	LCD display with bar graph indicating polarity and relative strength of signal. Also provides low battery indication.
Operating Temperature:	-13° to 140° F (-25° to 60° C)
Exterior Sensor Tube:	Aircraft grade aluminum
Warranty:	7 Years

Features

Low battery indication with flashing LCD when batteries need replacing

Varying pitch audio signal mode using a moving coil speaker for enhanced audio output

Waterproof sensor tube pressured tested to water depths of up to 220 feet

Easy-to-use, one-handed operation with four-button keypad:

   On/Off button: Turns unit on or off
   Zero button: Automatically calibrates unit to ambient magnetic conditions
   Gain Up button: Increases the locating sensitivity of the unit
   Gain Down button: Decreases the locating sensitivity of the unit

Includes soft case with carrying straps and inside pocket for batteries and manual

Rugged construction for field conditions

Detection of buried ferrous metal objects at depths up to 8 feet

   Hand gun: One to two feet
   175mm projectile: Four to five feet
   55-gallon drum: Six to ten feet

Detection of ferrous metal objects and weapons on persons

Underwater search and detection of:

   Submerged vehicles
   UXOs and mines
   Salvageable wrecks
   Pipes and cables
