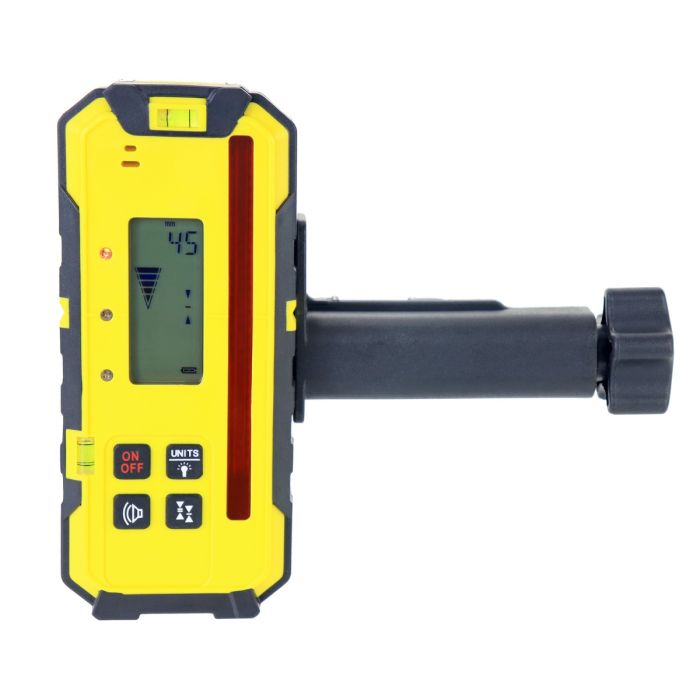

Survey Instrument Sales FRD800 Laser Receiver
Dual Vial Large Window Laser Detector
The FRD800 is a "top of the range" detector for the Professional Tradesperson which is easy-to-use and accurate. It is ideal for use with any brand of rotating RED beam laser level.
The FRD800R Laser Detector is a highly versatile, well-featured laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors.
It features a digital readout of elevation that provides a numeric display of +/-45mm to 1mm resolution. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity. The readout is displayed on large front and rear LCD's, showing exactly how far the elevation is from on-grade. A back-light assists readings in low ambient lighting.
Selectable units of measurement can be displayed to meet your specific application: in mm, cm or inches. A 125mm long red pick-up window, more than double the industry standard, allows quick acquisition of the laser beam. Readings are shown in three ways: via back and front LCD, coloured LED indication and by audible sound, selectable loud/normal/off.
This detector is designed to survive tough construction site conditions, being water and dustproof to IP55.
It can be used as either a hand-held or staff mounted detector for a wide range of construction applications.
Detecting Range: Min600m(Diameter)
Units display:mm, inch,ft,cm
3xAccuracy level Sections ±1mm,±5mm,±10mm
Detecting Sensor Range 125mm
Double Magnetic parts at top and left side
With Double Vials
Auto-switch off: 3min LCD auto-off/15 min self-switch off
IP:54, Full Rubber Protection
Battery support: 4xAA
Manufacturer | Survey Instrument Sales |
---|
