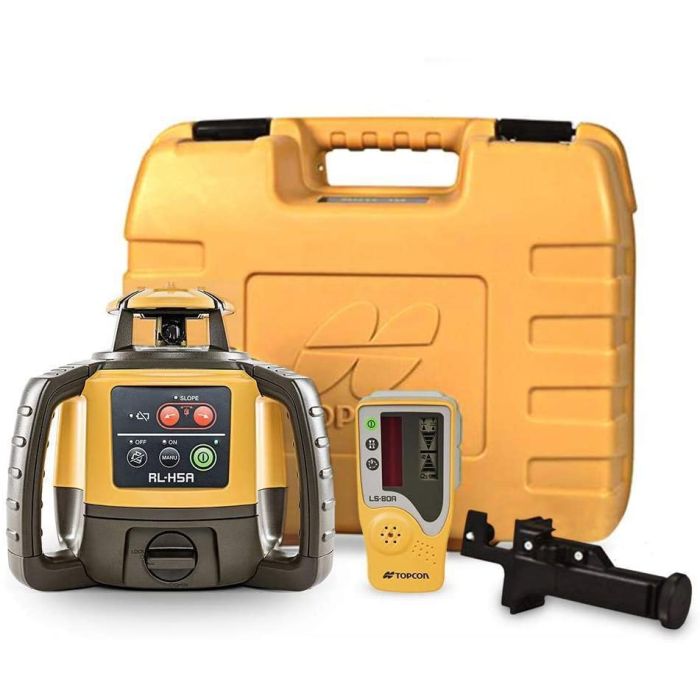

Topcon RL-H5 Series Rotating Grade/Slope Laser Level
Versatile all-in-one Horizontal, slope and long range laser in one tough package
The next step in distance and accuracy
The RL-H5A is a next generation self-leveling construction laser with great distance and high accuracy.
Long-range high accuracy laser
With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations.
Easy to use
With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±10 arc seconds.
Long range operation
Need to shoot elevations up to 400 m from your laser? No problem — this instrument has the power and range to cover a 800 m diameter job site.
Long battery life
The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with (4) D cell batteries.
All weather dependability
With the IP66 rating, the RL-H5A is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.
Five year guarantee
The RL-H5A laser comes with a Five Year Guarantee. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
| Accuracy | |
| Accuracy | RL-H5A: H: ±10 arc seconds |
| RL-H5B: H: ±20 arc seconds | |
| Self-Leveling Range | Horizontal ±5° |
| General | |
| Working Area | RL-H5A: 800 m |
| RL-H5B: 400 m | |
| Rotation Speed | 600 rpm |
| Operating Temperature | -20ºC to 50ºC |
| Dimensions (H x W x L) | 205 x 211 x 172 mm |
| Physical and Environmental | |
| Dust / Humidity | IP66 |
| Power and Electrical | |
| Operation Time | Alkaline: 100 hours |
| Ni-MH: 60 hours | |
| Manufacturer | Topcon |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal Only |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 300 ft +, 200 ft +, 75 ft +, 25 ft +, 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft +, 2,500 ft + |
| Grade / Slope | Single |
| Grade / Slope Mode | Manual |
Topcon RL-H5A Rotating Grade/Slope Laser Brochure
