RL-SV1S

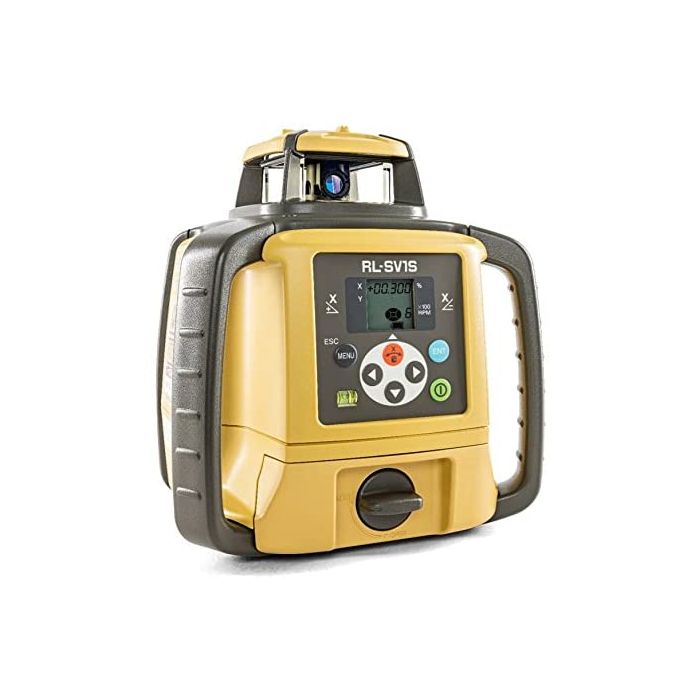

Topcon RL-SV1S Rotating Grade/Slope Laser
In stock
$2,061.00
Fully Featured, Easy To Use Self-Leveling Single Slope Laser
Single Slope Construction Laser
Single slope applications
Designed for a variety of tasks, it can be used for single slope applications. Slopes up to ±5% can be used in the X axis.
High powered
With an operating range of over 800 m (diameter), the RL-SV1S has the power to cover even the biggest projects.
Long battery life
Contractors who want a laser with a long battery life will love the RL-SV1S. With an operating time of 120 hours on alkaline batteries or 65 hours with the rechargeable Ni-MH battery pack, this laser will still be working long after others have quit.
All weather dependability
With the IP66 rating, the RL-SV1S is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.
| Accuracy | H: ±10 arc seconds |
| Self-Leveling Range | Horizontal ±5° |
| Grade | Single, ±5% |
| Working Area | 800 m (diameter) |
| Rotation Speed | 300, 600 rpm |
| Dust/Water Protection | IP66 |
| Operating Temperature | -20ºC to 50ºC |
| Battery | Alkaline: 120 hours Ni-Mh: 65 hours |
| Manufacturer | Topcon |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal Only |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 300 ft +, 200 ft +, 75 ft +, 25 ft +, 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft +, 2,500 ft + |
| Grade Capability | ±5% |
| Grade / Slope | Single |
| Grade / Slope Mode | Manual |
