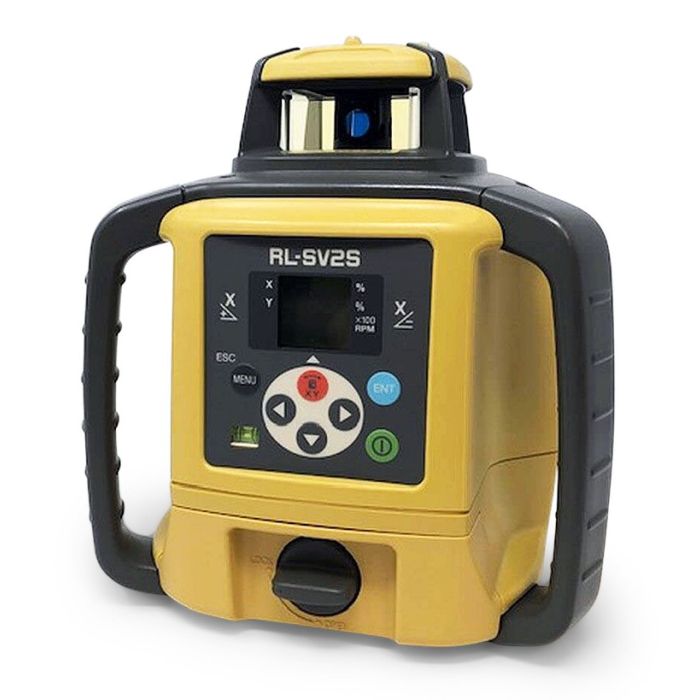

Topcon RL-SV2S Rotating Dual Grade/Slope Laser
A rotating laser that excels at multitasking
Horizontal, vertical or on the slopes
The RL-SV2S is built for multitasking — jobs where you need a laser for horizontal, vertical, single or dual slope applications. This laser is easy to use and will meet all your job site rotating laser needs.
Multi-use applications
Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ±5% can be used in either the X or Y axis. Turn it on its side and use it for layout and alignment jobs.
High powered
With an operating range of over 800 m (diameter) the RL-SV2S has the power to cover even the biggest projects.
Long battery life
Contractors who want a laser with a long battery life will love the RL-SV2S. With an operating time of 120 hours on alkaline batteries or 65 hours with the rechargeable Ni-MH battery pack, this laser will still be working long after others have quit.
All weather dependability
With the IP66 rating, the RL-SV2S is “jobsite tough” and can withstand dust, a sudden shower and even torrential rainfall.
| Accuracy | H: ±10 arc seconds |
| Self-Leveling Range | Horizontal ±5° |
| Grade | Dual, ±15% |
| Working Area | 800 m (diameter) |
| Rotation Speed | 300, 600 rpm |
| Dust/Water Protection | IP66 |
| Operating Temperature | -20ºC to 50ºC |
| Battery | Alkaline: 120 hours Ni-Mh: 65 hours |
| Manufacturer | Topcon |
|---|---|
| Max Rotating Speed | 600 rpm |
| Laser Orientation | Horizontal & Vertical |
| Accuracy | 1/16" At 100ft |
| Leveling | Self Leveling |
| Laser Range | 300 ft +, 200 ft +, 75 ft +, 25 ft +, 50 ft +, 100 ft +, 250 ft +, 400 ft +, 500 ft +, 750 ft +, 1,000 ft +, 1,500 ft +, 2,000 ft +, 2,500 ft + |
| Grade Capability | ±15% |
| Grade / Slope | Dual |
| Grade / Slope Mode | Automatic |
